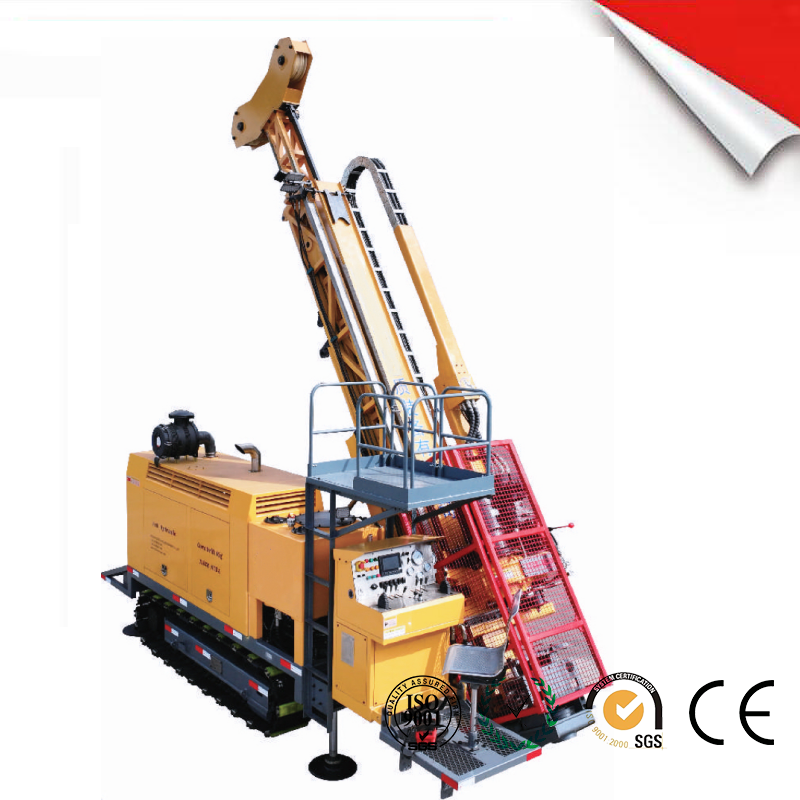

CR-18A Surface Exploration Drilling Rig

Brand Name:	SINOCOREDRILL
Model Number:	CR-18A
MOQ:	N/A
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Diesel Engine:

QSB6.7-C240-30 6.7L , 178KW

Drilling Depth:

NQ (OD 70.3mm ,ID 60 Mm) 1800m

Dimension And Weight:

6235*2330*2490mm ，12ton

Type:

Surface Core Drill Rig

Max. Torque::

6400 N·m

Feeding Stroke::

3700 Mm

Product Description

Key Features

Stable, Spacious, Superior

Built with top imported components for reliability, simple in its advanced design, and extremely powerful in its drilling ability. The foot clamp and breaking device is four tools built into one: the lower rod clamp, upper rod clamp, a rod making alignment device, and a rod centralizer.

Power Meets Precision, Engineered for the Extreme

Featuring international-brand hydraulic components and wireless remote-controlled steel tracks to master any complex terrain.

One-Stop Services with Complete Package Delivery

Sinocoredrill offers complete configuration of drilling rig with its accessories and wireline drilling tools (DCDMA standard). Provide details about your specific project, including geological conditions, intended drilling depth with related hole diameter, as these factors can influence the recommended configuration and final cost.

Specifications

Diesel Engine	Model		QSB 6.7-C240-30
	Displacement		6.7L , 6 CYLINDERS
	Power/ Rated RPM		178 kW (240HP)/ 2200rpm
Drilling Capacity	BQ	2200 m	HQ	1400 m
Drilling Capacity	NQ	1800 m	PQ	1000m
Drill Head	Rotation Motor		Two-speed Hydraulic Motor
	RPM		Three Shifts Step-less Change: 0-1250 RPM
	Head Opener		600 MM
	Hydraulic Chuck(PQ)		Hydraulically opened Axial Holding Capacity of 243000 N
	Max. Torque		6400 N·m
	Spindle Hole Diameter		125 mm
	Max. Lifting capacity of Spindle		220 kN
	Max. Feeding Power		112 kN
Capacity of Main Hoist	Hoisting Speed (single wire)		0-65 m/min(bare drum)
	Hoisting force (single wire)		120 kN
	Steel Wire Diameter		20 mm
	Steel Wire Length		50 m
Capacity of Wireline Hoist	Hoisting Force (single wire)		15 kN(3372 lbf) (bare drum)
	Steel Wire Diameter		6mm
	Steel Wire Length		2000 m
Mast	Mast Height		9.5 m
	Drilling Angle		45º off horizontal to 90ºvertical down
	Feeding Stroke		3700 mm
	Slippage Stroke		1120mm
	Feed Pull		25 ton
	Feed Thrust		9 ton
	Rod Pull		3m or 6m(9.84feet or 19.68feet)
Mud Pump	Output volume		250 L/min
Mud Pump	Discharge pressure		8.0 Mpa
Foot Clamp	Clamping Scope		55.5-118 mm through hole Ф165mm
Others	Weight		12 ton
	Transport Dimensions (L × W ×H )		6235×2230×2490mm
	Transport Way		Steel Crawler

Drilling depth capacity refers to N-size. The drilling depth capacities only serve as guidelines and refer to vertical down drilling. Sinocoredrill cannot guarantee that these results can be achieved in all drilling conditions. You find details about technical specifications in the brochure.

Application

Diamond core drilling is a common technique in the mining and construction industries for collecting hard rock core samples. It is ideal for geotechnical work in semi-consolidated/cemented rock to hard rock environments.

You need diamond core drilling solutions for both shallow and deep hole, small and large diameter core, including wire-line and conventional.

With up to 1,800 meters of NQ capacity, the CR-18A can meet the demands of most diamond coring projects.

Our CR series Surface Exploration Rigs are engineered with advanced technology to deliver maximum drilling efficiency, precision, and data accuracy. Designed for mineral exploration, geological mapping, and resource evaluation, these rigs ensure reliable performance across diverse terrains and formations.

Each rig is designed for durability, mobility, and ease of operation, ensuring consistent performance even under challenging site conditions. Equipped with advanced hydraulics, safety systems, and precise control mechanisms, our surface exploration rigs reduce downtime while improving drilling accuracy.

Engineered for performance, safety, and reliability—our Surface Exploration Rigs provide the ideal balance of power and precision for successful exploration outcomes.
