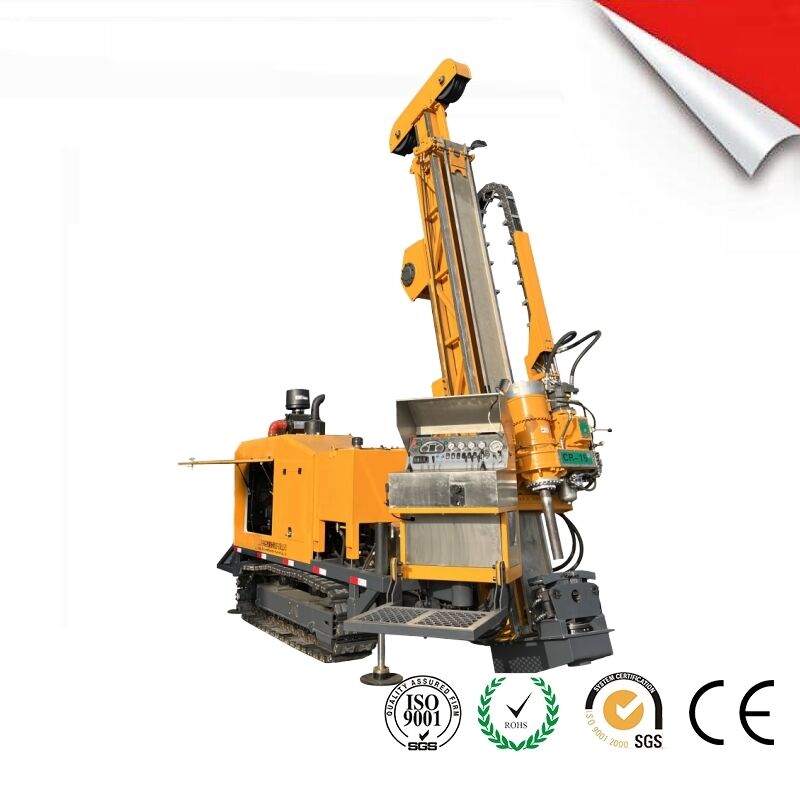

CR-15 Hydraulic Surface Core Drilling Rig

Brand Name:	SINOCOREDRILL
Model Number:	CR-15
MOQ:	N/A
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Drilling Depth:

NQ (OD 70.3mm ,ID 60 Mm) 1650m

Diesel Engine:

Weichai ， 176 KW (240HP)/ 2200rpm

Dimension And Weight:

5880×2240×2480mm ；10.5ton

Transport Way:

Steel Crawler

Highlight:

CR-15 hydraulic core drill rig

surface core drilling machine

hydraulic core drill rig with warranty

Product Description

Key Features

25 ton pullback with 6 m rod pull, direct-coupled feed cylinder with 3.7 m stroke

12 ton capacity mainline hoist； 0-90 degree mast angle capability； Hydraulic Chuck with 243 KN holding capacity Hydraulic powered rod clamp with BQ rod to HWT casing jaw sizes PQ foot clamp, spring close / hydraulic open for fail-safe operation

Self contained operator panel with manually operated hydraulic control valves

Individual cooling system, Centralized operation panel; Features remote-controlled crawler (tracked) movement; Choose the CR15 for your next project—where power, precision, and global reliability converge.

Full hydraulic system for smooth operation and precise control

Its advanced hydraulic system, featuring high-performance components from industry leaders like DANFOSS and Germany REXROTH, ensures smooth and powerful operation; With a substantial maximum lifting force and a torque of up to 5750 Nm, it handles demanding drilling tasks with ease and stability; CR15 is compact, self-propelled crawler chassis provides exceptional mobility and adaptability on any job site . Designed for simplicity, it allows for easy operation and maintenance, ensuring minimal downtime and lower operational costs.

Specifications

Diesel Engine	Model/ Displacement		WP6G240E330 (EU Stage IIIA)/ 6.7L
	Power/ Rated RPM		176 kW (240HP)/ 2200rpm
Drilling Capacity	BQ	2050 m	HQ	1350 m
	NQ	1650 m	PQ	950 m
Drill Head	Rotation Motor		Two-speed Hydraulic Motor
	RPM		Three Shifts Step-less Change: 0-1250 RPM
	Head Opener		600 MM
	Hydraulic Chuck(PQ)		Hydraulically opened Axial Holding Capacity of 243000 N
	Max. Torque		6200 N·m
	Hold Diameter		121 mm
	Max. Lifting capacity of Spindle		235 kN
	Max. Feeding Power		80 kN
Capacity of Main Hoist	Hoisting Speed (single wire)		0-65 m/min(bare drum)
	Hoisting force (single wire)		120 kN
	Steel Wire Diameter		20-22 mm
	Steel Wire Length		45 m
Capacity of Wireline Hoist	Hoisting Force (single wire)		15 kN(3372 lbf) (bare drum)
	Steel Wire Diameter		6-8 mm
	Steel Wire Length		2200 m
Mast	Mast Height		9.5 m
	Drilling Angle		45º off horizontal to 90º vertical down
	Feeding Stroke		3700 mm
	Slippage Stroke		1000 mm
	Feed Pull		25 ton
	Feed Thrust		9 ton
	Rod Pull		3m or 6m (9.84feet or 19.68feet)
Mud Pump	Output volume		250 L/min
	Discharge pressure		8.0 Mpa
Foot Clamp	Clamping Scope		55.5-118 mm through hole Ф165mm
Others	Weight		10.50 ton
	Transport Dimensions (L × W ×H )		5880×2240×2480mm
	Transport Way		Steel Crawler

Application

This machine is used for plain, hilly terrain, work under the environment of high temperature, cold areas. Main machine adopts self-propelled chassis crawler , engine power, mud pump, winch and other integrated structure ,also can be customized platform truck structure, it is mainly used for metal and non-metallic solid mineral survey and exploration, In addition, also can be used in engineering geology exploration, hydrogeology survey, reconnaissance and exploration of oil and gas field ,water well drilling etc . The rig has reasonable layout, compact structure, superior performance, simple operation and convenient maintenance. It is the ideal coring drilling equipment.

1.Reliable performance

The main accessories are purchased internationally. The diesel engine, hydraulic pump, main valve, motor, travel reducer and key hydraulic accessories are all selected from well-known brands at home and abroad.

2.High efficient

Large torque, high power configuration, reasonable structural design, advanced operation mode and 6m long drill pipe ensure the efficient construction of the drill.

3.Environmental protection

The diesel engine emission is the national third electronic injection diesel engine, low pollution emission, professional noise reduction design, so that drilling RIGS can be suitable for urban construction.

4.Energy saving

The rig uses advanced load sensitive control technology to reduce power consumption and system heat to a minimum.

CR-15 drilling machine is mainly used for inclined and straight hole drilling, which is suitable for geology, metallurgy, coal, nuclear industry, hydrology and other industries. It is a core drilling equipment mainly for diamond and hard alloy drilling.
