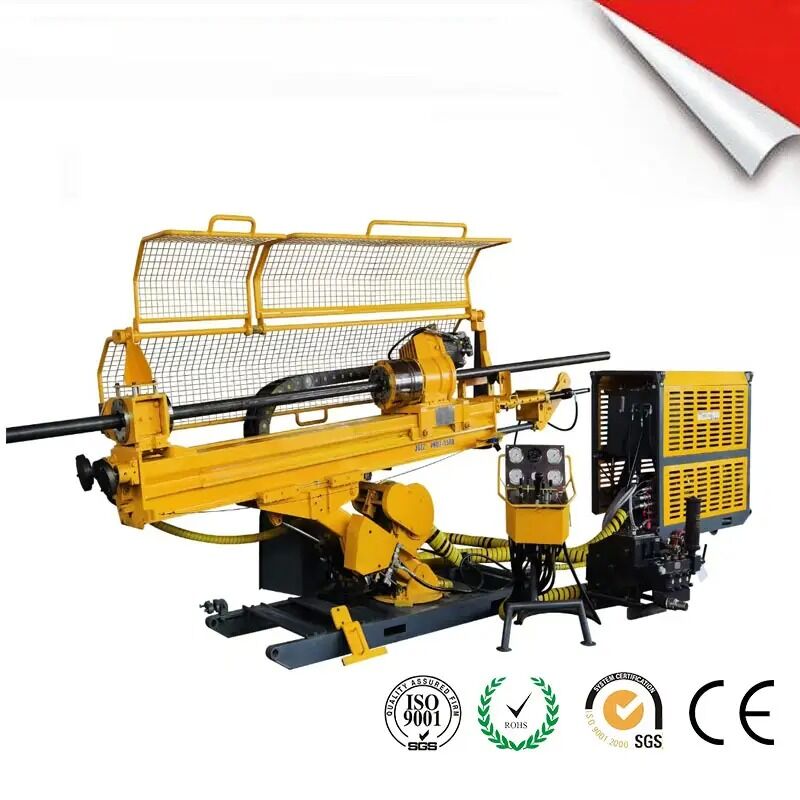

UN1000 Underground Core Drilling Rig

Brand Name:	SINOCOREDRILL
Model Number:	UN1000
MOQ:	N/A
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Drilling Capacity:

BQ1300M; NQ1000M; HQ500M

Application:

Mineral Exploration；Underground ；Tunnel

Electric Motor/ RPM Power:

75kW (1450r/min)

Max Torque:

1650Nm

Spindle Speed:

0-1400r/min

Drilling Angle:

0-180° All-directional In Space

Highlight:

underground core drilling rig

UN1000 underground drill rig

core drilling rig with warranty

Product Description

Key Features

Mast Structure with Equal Pulling and Pushing Force

The mast is the backbone of the drill rig. The double-out rod oil cylinder is directly connected to the mast, which can reduce maintenance costs and provide equal pulling and pushing force. The UN1000 drill rig has the ability to drill upward without any modification to the mast. The two sides of the mast are equipped with wear-resistant strips, ensuring a long service life and low maintenance costs.

Nitrogen Spring Holder

The nitrogen spring holder is hydraulically opened and clamped by nitrogen. The service life of the nitrogen oil cylinder can reach up to 1 million times, greatly reducing equipment maintenance costs. The linkage between the chuck and the holder can avoid the risk of drill pipe falling caused by human error.

Mechanical Power Head Components

The power head is the core of the drill rig. The PHD drill rig adopts an extra-large bearing design to improve durability. The gearbox is fully enclosed, which can easily cope with drilling operations at various angles. The slips can be quickly replaced to meet the construction requirements of B, N and H drill pipes. The chuck is clamped by springs and released hydraulically, without the worry of easy oil leakage of capsule chucks.

Specifications

Drill Hole Diameter	Drilling Depth (Downward/Horizontal/Upward)
B	1300m / 1300m / 800m
N	1000m / 1000m / 500m
H	500m / 500m / 300m
Drilling Angle	0-180° Omnidirectional
Motor Power / Speed	75kW / (1450rpm)
Maximum Flow of Main Pump	145L/min
Maximum Pressure of Main Pump	30MPa
Maximum Flow of Auxiliary Pump	65L/min
Maximum Pressure of Auxiliary Pump	24MPa
Feeding Stroke	1.8m
Feeding Speed	0.8m/s
Feeding Force	108KN
Lifting Force	108KN
Driving Mode	Electric Motor
Inner Diameter of Spindle Through Hole	93mm
Spindle Speed	0-1400rpm
Maximum Torque	1650Nm
Winch Lifting Force	12KN (Empty Drum) 4KN (Full Drum)
Rope Capacity	1300m
Rope Speed	250m/min (Full Drum) 90m/min (Empty Drum)
Steel Wire Rope Diameter	5mm
Winch Working Pressure Difference	20MPa
Holder Type	Nitrogen Oil Cylinder
Maximum Through Hole Diameter of Holder	170 (Cover Removed)
Axial Clamping Force	118KN
Maximum Pressure of Mud Pump	10MPa
Maximum Flow of Mud Pump	160L/min
Drill Rig Overall Dimension (L×W×H)	3800×980×1890mm
Power Station Dimension (L×W×H)	2080×1100×1660mm
Operation Platform Dimension (L×W×H)	420×700×1100mm
Bed Weight	1900KG
Power Vehicle Weight	1100KG
Operation Platform Weight	80KG

Protective nets ensure the operator’s safety.
Double-out rod composite oil cylinder enables the shortest machine body and maximum stroke, allowing construction with 3m drill pipes to improve work efficiency, with constant speed and equal pushing and pulling force.
The electrical control system is equipped with multiple protections to ensure equipment and personal safety.
The mechanical spring chuck is reliable and durable, effectively solving the problem of easy oil leakage of capsule chucks.
The power module is easy to adapt to the site.
Copy of U6 Atlas Copco Eprioc .

Application

Sinocoredrill’s Underground core rigs have an advanced, versatile and compact design which makes them ideal for the underground environment and a wide range of applications.
