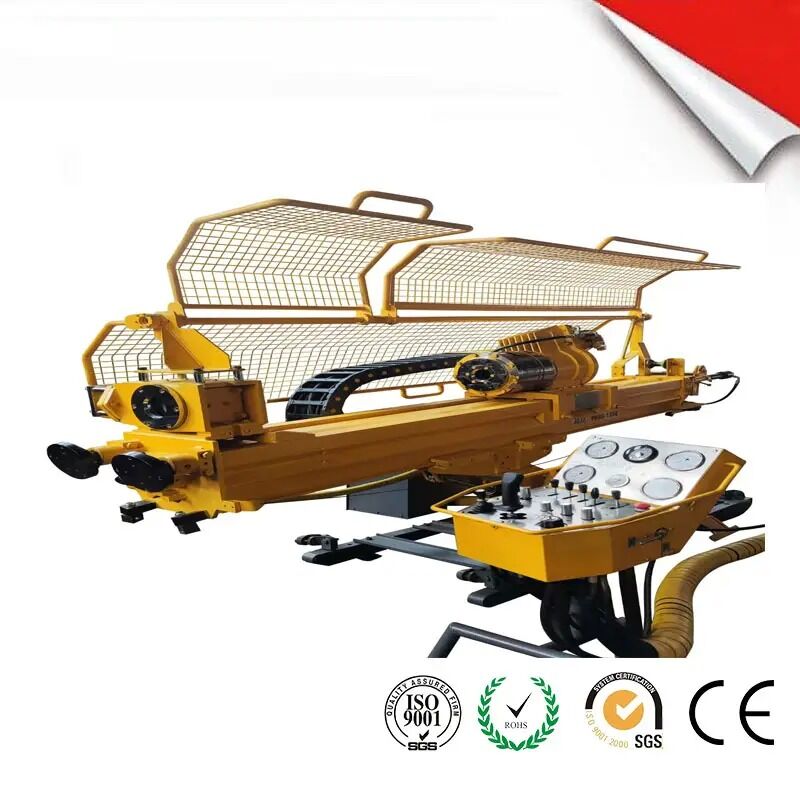

UN1500 Underground Core Drilling Rig

Key Features

Mast Structure with Equal Pulling and Pushing Force

The mast serves as the backbone of the drill rig. The double-out rod oil cylinder is directly connected to the mast, reducing maintenance costs while providing equal pulling and pushing force. The UN1000 drill rig can drill upward without any mast modifications. Both sides of the mast feature wear-resistant strips, ensuring long service life and minimal maintenance costs.

Nitrogen Spring Holder

The nitrogen spring holder operates with hydraulic opening and nitrogen clamping. The nitrogen oil cylinder offers an exceptional service life of up to 1 million cycles, significantly reducing equipment maintenance expenses. The integrated linkage between chuck and holder eliminates the risk of drill pipe falling due to human error.

Mechanical Power Head Components

The power head represents the core of the drill rig. The PHD drill rig incorporates an extra-large bearing design for enhanced durability. The fully enclosed gearbox efficiently handles drilling operations at various angles. Slips can be quickly replaced to accommodate construction requirements for B, N, and H drill pipes. The chuck features spring clamping and hydraulic release, eliminating concerns about oil leakage common with capsule chucks.

Specifications

Drill Hole Diameter	Drilling Depth (Downward/Horizontal/Upward)
B	1500m / 1500m / 1000m
N	1100m / 1100m / 600m
H	600m / 600m / 400m

Parameter	Specification
Drilling Angle	0-180° Omnidirectional
Motor Power / Speed	90kW / (1450rpm)
Maximum Flow of Main Pump	188L/min
Maximum Pressure of Main Pump	30MPa
Maximum Flow of Auxiliary Pump	65L/min
Maximum Pressure of Auxiliary Pump	24MPa
Feeding Stroke	1.8m
Feeding Speed	0.8m/s
Feeding Force	108KN
Lifting Force	108KN
Driving Mode	Electric Motor
Inner Diameter of Spindle Through Hole	93mm
Spindle Speed	0-1400rpm
Maximum Torque	1650Nm
Winch Lifting Force	12KN (Empty Drum) 4KN (Full Drum)
Rope Capacity	1300m
Rope Speed	250m/min (Full Drum) 90m/min (Empty Drum)
Steel Wire Rope Diameter	5mm
Winch Working Pressure Difference	20MPa
Holder Type	Nitrogen Oil Cylinder
Maximum Through Hole Diameter of Holder	170mm (Cover Removed)
Axial Clamping Force	118KN
Maximum Pressure of Mud Pump	10MPa
Maximum Flow of Mud Pump	160L/min
Drill Rig Overall Dimension (L×W×H)	3800×980×1890mm
Power Station Dimension (L×W×H)	2080×1100×1660mm
Operation Platform Dimension (L×W×H)	420×700×1100mm
Bed Weight	1900KG
Power Vehicle Weight	1100KG
Operation Platform Weight	80KG

Additional Features:

Protective nets ensure operator safety
Double-out rod composite oil cylinder enables the shortest machine body and maximum stroke, allowing construction with 3m drill pipes to improve work efficiency, with constant speed and equal pushing and pulling force
The electrical control system is equipped with multiple protections to ensure equipment and personal safety
The mechanical spring chuck is reliable and durable, effectively solving the problem of easy oil leakage of capsule chucks
The power module is easy to adapt to the site
Copy of U6 Atlas Copco Eprioc

Application

Sinocoredrill's Underground core rigs feature an advanced, versatile, and compact design that makes them ideal for underground environments and a wide range of applications.
