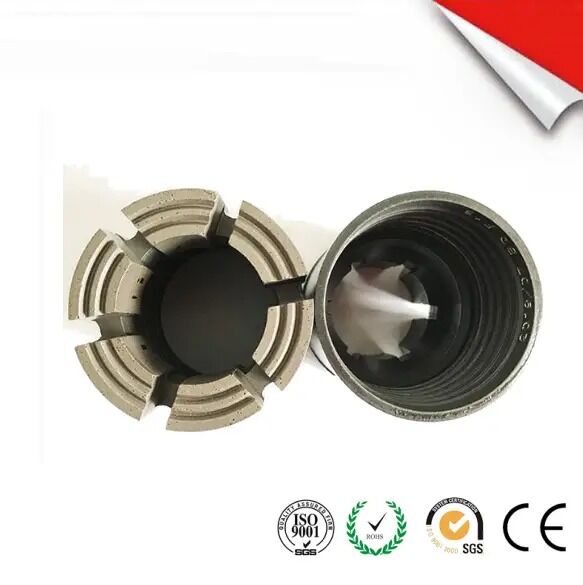

BQ Impregnated Diamond Core Drill Bit

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/M
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Outer Diameter:

59.56 Mm

Inner Diameter:

36.4 Mm

Crwon Height:

10/12/15/18 Mm Or Customized

Crown Profile:

Standard

Color:

Black

Applicaion:

All Conventional And Wireline Core Barrel

Highlight:

BQ impregnated diamond core bit

diamond core drill bit with warranty

impregnated diamond bit for drilling

Product Description

Key Features

15mm Standard Crown Height

More Durable & Cost-Saving With a DCDMA-standard 15mm matrix height , each bit delivers 25-30% more drilling footage. It reduces replacement frequency and offers superior durability.

Multi-Hardness Matrices

Full Strata Coverage 18 matrix series (F2-F18 ) to match different strata: soft rock (shale), medium-hard rock (sandstone), hard rock (granite), and ultra hard rock(quartzite). No need to switch bits for mixed strata. Efficient Drilling in Hard Strata New technology matrix for hard strata like quartzite and siliceous rock (Mohs 8-9), increasing drilling footage efficiency by ≥20%.

Forged in Extreme Heat

Our diamond core bits are born from a precisely controlled High-Temperature, High-Pressure (HTHP) sintering process. This advanced technique fuses premium synthetic diamonds with a specialized metal matrix at the molecular level, creating a supremely dense and uniform structure. The result is a cutting crown of unparalleled integrity—engineered for consistent performance, superior wear resistance, and maximum lifespan in the most demanding drilling environments.

Specifications

Sizes of Core Bits and Reaming Shells
Description	Core bit		Core bit		Reaming shell
Model	Outside Diameter		Inside Diameter		Outside Diameter
Model	Inches	mm	Inches	mm	Inches	mm
BTW	2.345	59.56	1.667	42.1	2.36	59.95
NTW	2.965	75.31	2.218	56.1	2.98	75.7
HTW	3.762	95.57	2.809	71.1	3.783	96.09
AC(AQ)	1.875	47.63	1.062	26.97	1.89	48.01
BC(BQ)	2.345	59.56	1.433	36.4	2.36	59.95
BC3(BQ3)	2.345	59.56	1.32	33.53	2.36	59.95
NC(NQ)	2.965	75.31	1.875	47.63	2.98	75.7
NC3(NQ3)	2.965	75.31	1.775	45.08	2.98	75.7
HC(HQ)	3.762	95.57	2.5	63.5	3.783	96.09
HC3(HQ3)	3.762	95.57	2.406	61.11	3.783	96.09
PC(PQ)	4.805	122.05	3.345	84.96	4.828	122.65
PC3(PQ3)	4.805	122.05	3.27	83.06	4.828	122.65
T2-56	2.205	56	1.642	41.7	2.217	56.3
T2-76	2.992	76	2.429	61.7	3.004	76.3
T2-86	3.385	86	2.823	71.7	3.398	86.3
T2-101	3.976	101	3.295	83.7	3.988	101.3
T6-101	3.976	101	3.11	79	3.996	101.5
T6-131	5.157	131	4.252	108	5.157	131.5

Application

COMMON DESIGN MODIFICATIONS INCLUDE:

Thread Type
OD Size
Crown Profiles for surface set bits
Solutions for special rock conditions
Cutter size for PCD bits

Evaluate the four criteria below to make an initial selection.

Rock Hardness LOW? Use lower bit ； HIGH? Use higher bit
Rock Grain Size LARGE? Use lower bit ；FINE? Use higher bit
Formation Drill Power LOW? Use higher bit ； HIGH? Use lower bit
BROKEN? Use lower bit ； COMPETENT? Use higher bit

Fine tune for the selection of the next bit.

TIP SLOW penetration rate? Try higher bit ; SHORT bit life? Try lower bit

FAQ

01:Are you a manufacturer,trading company or a third party?

We are the earliest factory to produce drilling tools which have more than 20 years experience.

02:Where is your factory located?How can l get to your factory?

We are in Wuxi City,China,where is near Shanghai,we can pick you up at the airportsor railway stations.

03:What is your minimum order quantity?

Our MOQ is 1 pc.

04:Can you send me free samples?

We’re happy to provide small value free samples at your delivery cost.

05:Can you do customized products?

Yes,we are happy to do customized products if you can provide drawing or samples.

06:Can you do private label,such as put on our logo?

Yes,put on your logo is available.

07:How can I get the after-service &quality guarantee?

We will replace the products by free if the problems were caused by us.If it is the men-made problems,we may also send the products,however it will be charged. Any problems,you may call us directly.
