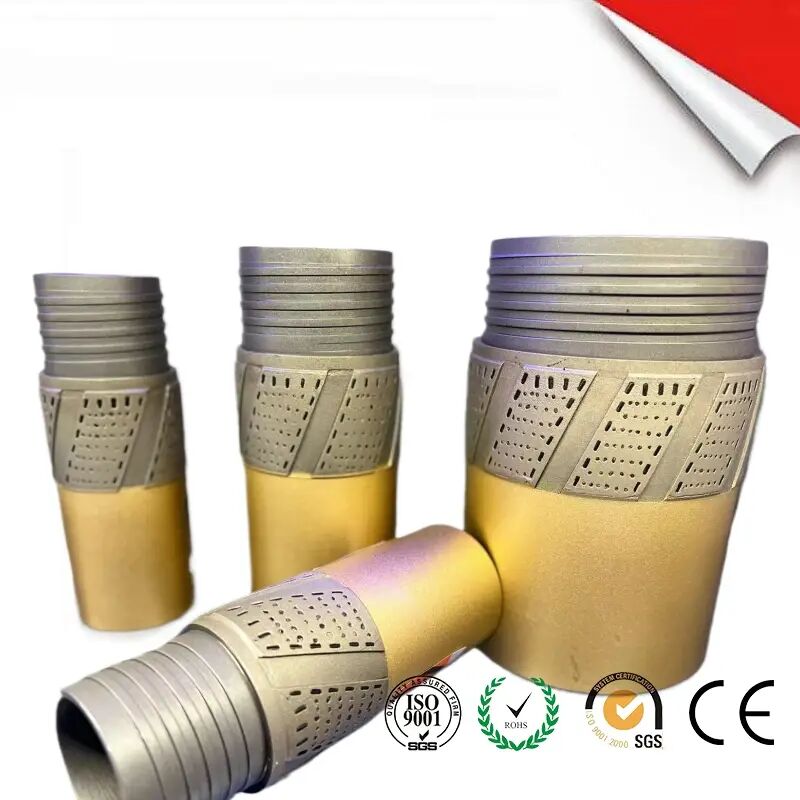

Surface Set Natural Diamond Reaming Shells

Brand Name:	SINOCOREDRILL
Model Number:	AQ,BQ ,NQ , HQ ,PQ
MOQ:	N/M
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Type:

Surface Set Diamond ,SS

HS Code:

82071910

Machine Type:

Drilling Tools

Highlight:

natural diamond reaming shells

surface set reaming shells

diamond reaming shells with warranty

Product Description

Key Features

Premium Diamond Reaming Solutions: Impregnated (IMP) & Surface-Set (SS)

We mainly offer two types of diamond bits:

Impregnated Diamond Reaming Shells(IMP R/M)
Surface Set Diamond Reaming Shells(SS R/M)

Cost-Effective & Standard-Compliant: Reaming Shells for Most Core Barrels

These economical diamond-set reaming shells are available for use on most conventional and wireline core barrel assemblies of up to 152 mm (6 inches) in diameter. They are designed and manufactured to conform to the standard dimensional requirements for reaming shells used with all common core barrel types.

Guaranteed Compliance with DCDMA Q Series Standards.

Our products are precision-manufactured to meet the stringent DCDMA Q series specifications, guaranteeing optimal performance, perfect interchangeability with major systems, and long-term operational consistency. Choose the standard, choose certainty.

Specifications

Item	Diamond bit							REAMING SH ELL
“Q”series wireline	size	Bit set OD			Bit set ID
		mm		inch	mm		inch	mm	inch
	AQ	47.60		1.88	26.97		1.06	48.00	1.89
	BQ	59.50		2.35	36.40		1.43	59.90	2.36
	NQ	75.30		2.97	47.60		1.88	75.70	2.98
	HQ	95.58		3.77	63.50		2.50	96.00	3.78
	PQ	122.00		4.80	84.96		3.35	122.60	4.83
Swedish Metric T2 Series	36	36.0	1.417		22		0.866	36.3	1.429
	46	46.0	1.811		32		1.260	46.3	1.823
	56	56.0	2.205		42		1.654	56.3	2.217
	66	66.0	2.598		52		2.047	66.3	2.610
	76	76.0	2.992		62		2.441	76.3	3.004
	86	86.0	3.386		72		2.835	86.3	3.398
	101	101.0	3.976		84	3.307		101.3	3.988
Swedish T Series	TAW	47.6	1.875		23.2	1.31		48.0	1.89
	TBW	59.5	2.345		44.9	1.77		59.9	2.36
	TNW	75.3	2.965		60.5	2.38		75.7	2.98

Application

Reaming shell is used to couple the drill bit with the core barrel. It is suitable for use on all conventional and wireline core barrel. This product is mainly designed to ream the hole to the standard diameter. It can keep the stability of the core barrel. When the old bit is replaced by the new one, reaming shell can also provide sufficient clearance for the new bit. It can also help to resist the abrasion of the core barrel.

How to use diamond reaming shell :

Diamond Reaming Shell is connected with a Bit to be used, and the drilling by Bit and grinding of side surface can be done simultaneously, but the drilled hole should be kept not smaller than the diameter of the Bit (Reaming).It should be used to prevent early wear and tear of the outer diameter of the Bit, and also to prevent vibration and deformation of the hole walls.As shown in the figures, it has a cylindrical shape, with diamond particles attached at outside diameter and touchable screws at both ends.Diamond Reaming Shells are produced with the outside diameter larger than that of the Bit.

Surface Set Natural Diamond Reaming Shells
