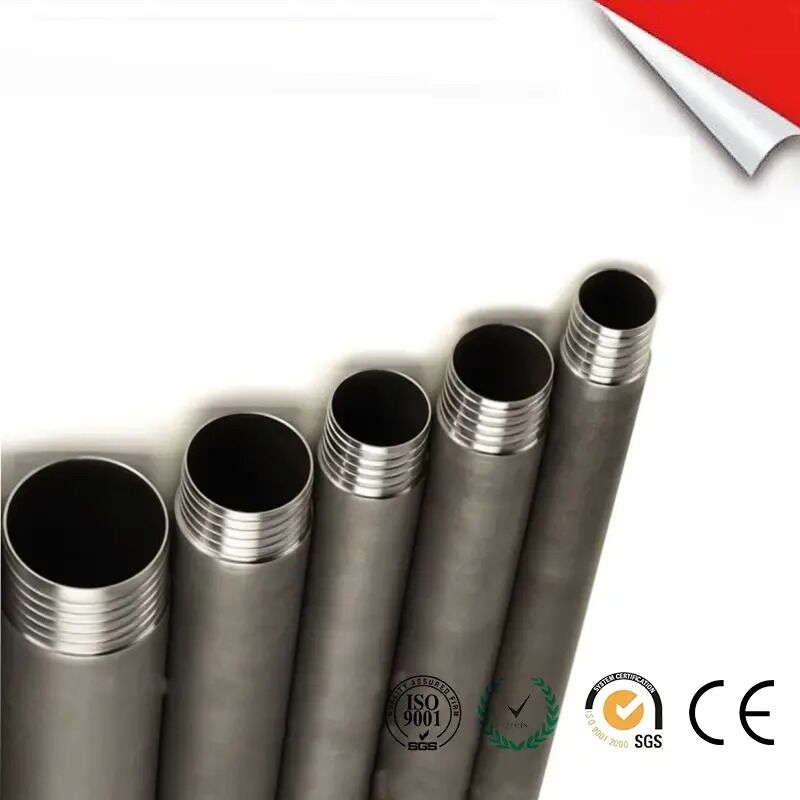

BQ Wireline Drill Rod

Fully Robotic Automation, Robotized & Automated Processing

Accuracy of threads will determine the use effects and life time of drill rod and casings. CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.

Load efficiency of 30% provides sufficient strength for most drilling conditions

SINOCOREDRILL only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Whole rod Heat treated significantly increases rod life

Rod Pin thread crest is hardened to nominal 50-55 HRC to eliminate damaging ‘adhesion’ wear Eliminates the transfer of wear material back and forth as seen between threads of equal hardness, leading to large scale galling and joint seizing Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentrically of the treated tubes will be tested in our lab.

SINOCOREDRILL only choose the best steel tubes in the market to manufacture our rods and pipes. Spot check will be conducted after the steel tubes delivered to company. We will make sure the compositions and specifications match the inspection report form the suppliers.

Heat treatment will greatly improve the material strength and increase the thread wear life of the rods and casings. We conduct either tru-wall or both ends heat treatment to the tube body. After heat treatment, strength, hardness, straightness and concentricity of the treated tubes will be tested in our lab.

Accuracy of threads will determine the use effects and life time of drill rod and casings.

CNC latches and form cutter are used in thread opening processing to minimize error made by anthropic factors.

Surface of the threads will be cleaned to remove burr adhered after threads are opened.

Wireline series: AQ, BQ, NQ/NRQ, HQ,/HRQ PQ/PHD

Casing: AW, BW, NW, HW, HWT, PW,SW

Chinese Standard: S56, S59, S75, S95, S110, S130, S57X, S75A, S95A

Slightly larger than the AQ, the BQ drill rod offers a good balance between maneuverability and increased core size. It is a popular choice for a wide range of exploration and geotechnical projects, providing larger core samples than AQ while still maintaining relatively high drilling speeds.

BQ rods are versatile, suitable for various ground conditions, and are frequently used when a more substantial core is needed for detailed analysis without moving to the heavier NQ system.

• Mineral exploration (gold, copper, nickel, lithium)
• Geotechnical surveys
• Geothermal well development
• Hydrological research
• Environmental monitoring
