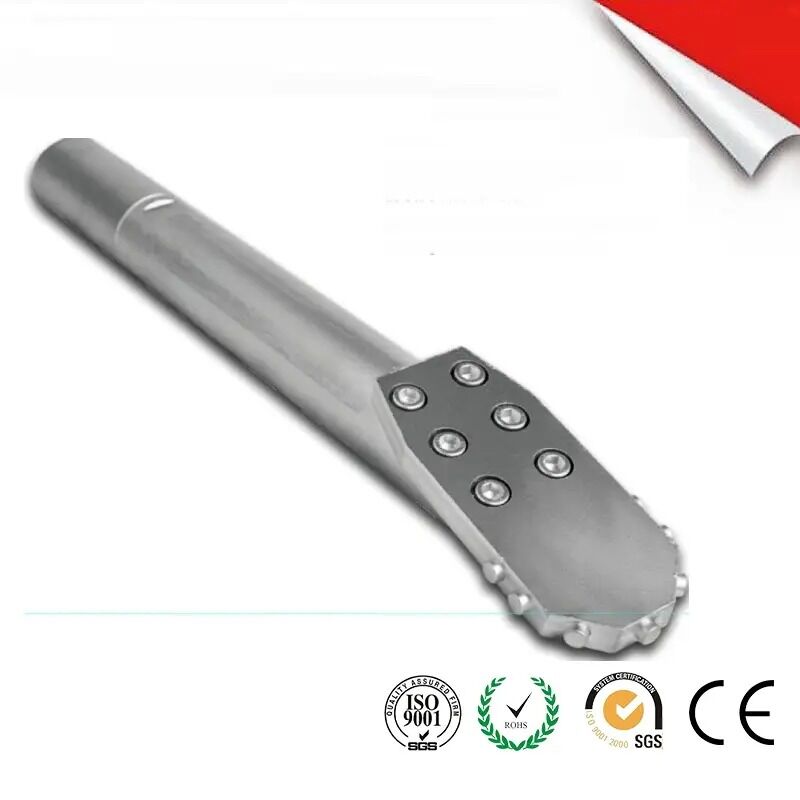

HDD Plate Pilot Bit

Key Features

Tough, Versatile, and Built to Work Across All HDD Rigs

We produce all kinds of HDD Drill Rod, HDD drill tools, including starter rod, torque sleeve, pilot, reamer, swivel. Our HDD Drill Rod, HDD drill tools have been widely used by domestic and foreign clients and enjoy good reputation. Welcome clients to cooperate with us. we can provide one-stop solution service on HDD drills.

Tungsten Carbide & Patented Inserts: Engineered Protection for Rock HDD Backreaming

Engineered to improve longevity ina variety of drilling enviroments, the SINOCOREDRILL rock HDD backreamer is equipped with all-round protection that includes strategically placed tungsten carbide disks and patented special inserts. The rock HDD backreamer is designed for smooth cutting downhole and is available in multiple sizes to maximize your effectiveness and productivity when drilling rock.

Specifications

We offers a complete line of transmitter housings, tail pieces, and replacement parts for use on all Ditch Witch and Vermeer rig models.

All transmitter housings are compatible with all styles of OEM type bolt-on pilot/paddle bits.

Tail pieces are available for use with all housings. Tail pieces are designed to increase the longevity of the housing.

Connection: Direct connection with drill pipe

Octagonal connection

Loading the transmitter: Back-load

Side-load

Application

Horizontal Directional Drilling (HDD) is a trenchless method for installing underground pipelines, conduits, and cables without the need for extensive open-cut excavation. This technique involves drilling a precisely controlled pilot hole along a predetermined bore path, often navigating under obstacles like roads, rivers, or existing infrastructure.

After the pilot hole is complete, reaming tools are used to enlarge the bore to the desired diameter, and then the utility pipe is pulled through the enlarged hole. HDD minimizes surface disruption, reduces environmental impact, and offers a cost-effective solution for a wide range of underground utility installations.

Tools Needed:

Drill rig

Drill pipe

Drill bit

Mud mixing system

Locator and tracking equipment

Reaming tools
