BW250 Horizontal Triplex Mud Pump
  • name
  • name
  • name
  • name

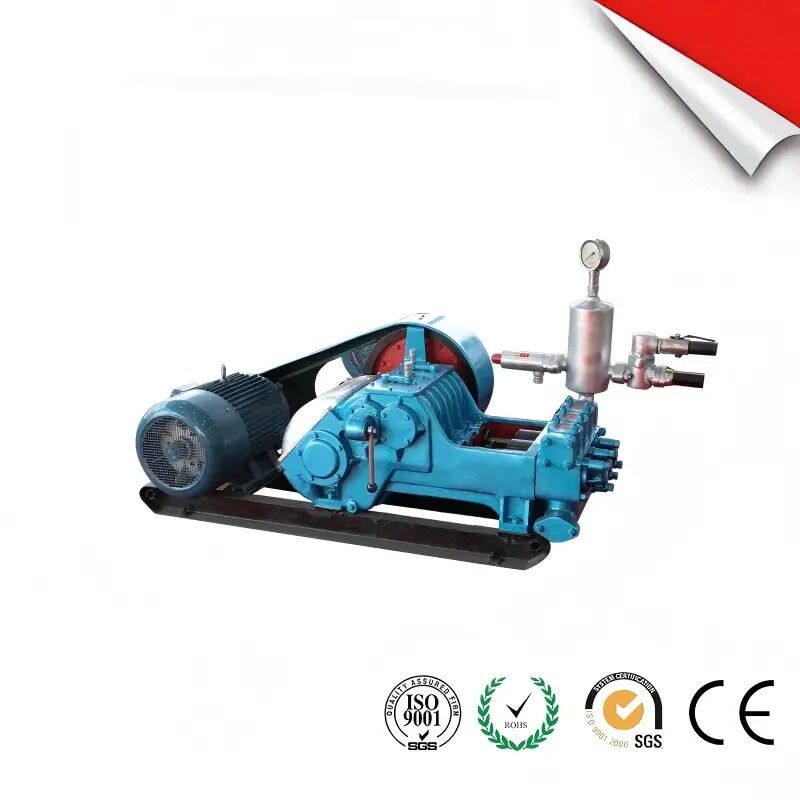

BW250 Horizontal Triplex Mud Pump

Brand Name: SINOCOREDRILL
Model Number: Horizontal, triplex, reciprocating, single acting piston pump
MOQ: N/M
Payment Terms: L/C,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001
Model:
BW250
Input Power/speed (kw/r.p.m):
15/1500
Highlight:

Horizontal Triplex Mud Pump

,

High Pressure Drilling Mud Pump

,

Compact Structure BW250 Mud Pump

Product Description
Key Features

Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.

Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, sage operation, easy maintenance.High quality pump parts, less wearing parts, long service life, low construction cost.

BW series mud pump is horizontal triplex grout pump with high stability and high pressure.

High-pressure pump is the key equipment for high-pressure jet grouting construction. It is mainly suitable for high-pressure jet grouting, curtain grouting, retaining cofferdam, mine plugging, wellbore retaining wall, slope anchoring, etc. Clear water can also pump high viscosity, large specific gravity cement slurry.

Specifications

BW Series Mud Pump Technical Parameters:

Model BW150 BW160/10 BW250 BW320 BW450 BW600 BW850/2
Type Horizontal three cylinder

reciprocating single acting

piston pump

 Horizontal three cylinder reciprocating
single acting piston pump		 Horizontal three cylinder reciprocating
single acting piston pump		 Horizontal three cylinder reciprocating
single acting piston pump		 Horizontal three cylinder reciprocating
single acting piston pump		 Horizontal three cylinder reciprocating single acting piston pump Horizontal double cylinder reciprocating
double acting piston pump
Cylinder diameter (mm) 70 70 100 80 100 100 150
Stroke(mm) 80 70 80 65 110 85 110 180
Pump Speed(times/min) 57,86,130,222 47,71,107,183 200,132,83,55 200,116,72,42 200,116,72,42 214,153,109,78 170,115 232,162,109,76 82/58
Flow(L/min) 38,58,90,150 32,47,72,125 160,107,67,44 250,145,90,52 166,96,60,35 320,230,165,118 450,350 600,415,280,195 850/600
Pressure(Mpa) 7,4.8,3.2,1.8 7,6,4,2.3 2.5,4,6.5,10 2.5,4.5,6,6 4,6,7,7 2.2,3.6,6.2,10 1.2,2 3.5,5,7.5,10 2.0 /3.0
Power(Kw) 7.5 11 15 45 18.5 55 37
Dimension(mm) 1925*795*1150(Diesel engine)
1840*795*995(Electric motor)		 1450*745*970 1000*995*650 1905*1100*1200 1350*820*1040 1500*890*1230 2000*1030*1400
Weight(kg) 630(Diesel engine)
560(Electric motor)		 430 760 720 540 1400 1500
Application

Projects: Construction drilling e.g. prospection, geotechnical investigation(geological exploring),tunnel, well etc.

Exploration:Coal mining exploration, Ore exploration;

Water well:Small hole diameter water well drilling;

Pipe-installing:Geothermal pipe-installing for heat pump;

Foundation piling:Small-diameter hole foundation piling drilling.
