BQ NQ HQ PQStrong temperature resisting with high intensity Plastic Drilling Core Tray

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Features:

High Efficiency, Eco-friendly

Product Name:

Drill Rig Parts

Certificates:

ISO9001: 2000 And API 5DP

Power Type:

Hydraulic

Model:

BQ, NQ, HQ , PQ

Type:

Core Tray

Supply Ability:

Based on Detailed Order

Highlight:

wireline coring system

wireline core drill parts

Product Description

Strong temperature resisting with high intensity Plastic Drilling Core Tray BQ NQ HQ PQ

Plastic Drilling Core tray box (BQ NQ HQ PQ )

Our core tray is made of high-quality plastic..It is strong and has longer life to use. there are BQ, NQ, HQ , PQ , four model for your choice.

Specifications

1:-Transportation cost is greatly reduced
2:-Not easy to be destroyed
3: -High intensity

1:low temperature resisting,not easy to- be destroyed.

2:-High temperature resisting with high intensity.

3:-Fast stockpile could be achieved easily without slippery.

4:Various models and complete ranges -of products.

5:Professionally produced by honorable enterprise of -3A classes

Feature:

1 standard one meter slot length.

2 environment friendly compared to wooden ones.

3 core boxes can stack up to save space.

4 reliable

Sizes of core tray

The plastic core tray produced could meet the requirements in cold and hot temperatures and are of- good reputation.

Model:BQ

Size:1070×385×50
Inseam Length:1m
The width of each slot :48mm
Length of Cores to hold:6m
Lattices Nos:6

Weight: 2.2kgs (approx.)

Model:NQ
Size:1070×385×55
Inseam Length:1m
The width of each slot :55mm
Length of Cores to hold:5m
Lattices Nos:5

Weight: 2.2kgs (approx.)

Model: HQ
Size: 1070×385×70
Inseam Length: 1m
The width of each slot : 69mm
Length of Cores to hold: 4m
Lattices Nos: 4

Weight: 2.4kgs (approx.)

Model: PQ
Size: 1070×385×93
Inseam Length: 1m
The width of each slot : 92mm
Length of Cores to hold: 3m
Lattices Nos: 3

Weight: 2.8kgs (approx.)

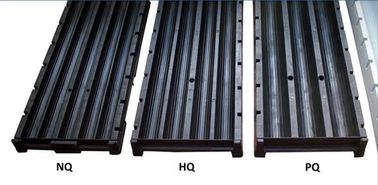

NQ CORE tray；
