Exploration Underground Drill Rig Efficient Deep Hole Drill Machine



The UX2000/ U8 is a true deep hole exploration rig. It’s quite simply  the most powerful exploration rig for its size on the market today.At home both above and below ground, the UX2000/U8 can drill up to 2000 m.Frequently operating for weeks on end with the same bore hole,it’s imperative that the rig keeps running efficiently. Here’s where the Automatic Performance System (APC)* comes into its own. All the operator needs to do is set the drilling parameters and the APC* takes care of the rest. No other surface core drill rig can offer this level of automation.





The UX2000/U8 is the most powerful underground core drilling rig. Its robust feed frame with a telescopic hydraulic cylinder provides reliable, straight hole drilling. The UX2000/U8 is available with Automated Performance Control (APC) for efficient, user-friendly operation.


Basic data
Max depth 2 000 m (6 600 ft) (B)
Diameter 100 mm (4")
Max speed 1 200 rpm
Max torque 2 300 Nm (1 630 lbf ft)
Feed/Pull force 133 kN (29 000 lbf)
Feed lengths 1 800 mm (70")
Modules
Flush pump Trido 140
Power unit* PU 110E or PU 160DT
Hydraulic control systems
- PHC, Pilot hydraulic control
- APC, Automatic performance control
* Electric (E) or diesel (DT)



Main Features



  • The most powerful underground core drilling rig for efficient deep hole drilling.
  • Robust feed frame with a telescopic hydraulic cylinder for reliable, straight drilling.
  • Available with Automated Performance Control (APC) for efficient, user-friendly operation
  •





    The UX2000 is the most powerful underground core drilling rig. Its robust feed frame with a telescopic hydraulic cylinder provides reliable, straight hole drilling. The UX2000 is available with Automated Performance Control (APC) for efficient, user-friendly operation.


    Technical Specifications
    Depth capacity 2000 m
    Drill Rod Size B-H
    Max torque 2300 Nm
    Rotation, max, rpm 1190
    Feed force, pull push 133 kN
    Feeding length 1800 mm
    Height 1695 mm
    Width 1410 mm
    Length 3700 mm
    Weight 3450 kg

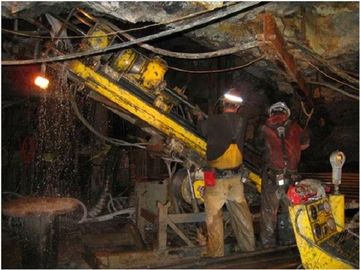

Exploration Underground Drill Rig Efficient Deep Hole Drill Machine 0

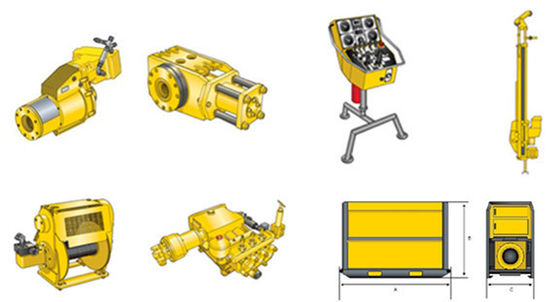

Exploration Underground Drill Rig Efficient Deep Hole Drill Machine 1
