2000m Drilling Depth Underground Drill Rig Diamec U8 With APC Control Deep Hole Drilling
The Diamec U8 is a true deep hole exploration rig. It’s quite simply the most powerful exploration rig for its size on the market today.At home both above and below ground, the Diamec U8 can drill up to 2000 m.Frequently operating for weeks on end with the same bore hole,it’s imperative that the rig keeps running efficiently. Here’s where the Automatic Performance System (APC)* comes into its own. All the operator needs to do is set the drilling parameters and the APC* takes care of the rest. No other surface core drill rig can offer this level of automation.

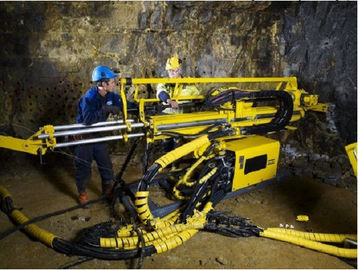

The U8 is the most powerful underground core drilling rig. Its robust feed frame with a telescopic hydraulic cylinder provides reliable, straight hole drilling. The U8 is available with Automated Performance Control (APC) for efficient, user-friendly operation.
Main Features
The most powerful underground core drilling rig for efficient deep hole drilling.
Robust feed frame with a telescopic hydraulic cylinder for reliable, straight drilling.
Available with Automated Performance Control (APC) for efficient, user-friendly operation
Basic data
Max depth 2 000 m (6 600 ft) (B)
Diameter 100 mm (4")
Max speed 1 200 rpm
Max torque 2 300 Nm (1 630 lbf ft)
Feed/Pull force 133 kN (29 000 lbf)
Feed lengths 1 800 mm (70")

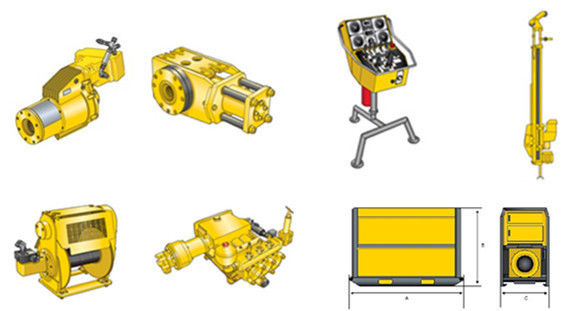

Modules
Flush pump Trido 140
Power unit* PU 110E or PU 160DT
Hydraulic control systems
- PHC, Pilot hydraulic control
- APC, Automatic performance control
* Electric (E) or diesel (DT)
| Technical Specifications | |
|---|---|
| Depth capacity | 2000 m |
| Drill Rod Size | B-H |
| Max torque | 2300 Nm |
| Rotation, max, rpm | 1190 |
| Feed force, pull push | 133 kN |
| Feeding length | 1800 mm |
| Height | 1695 mm |
| Width | 1410 mm |
| Length | 3700 mm |
| Weight | 3450 kg |
