Diamond Core Drill Bits HW Casing Shoes Rod Shoe WIth High Penetration Rate

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

High Speed,High Performance

Material:

Diamond

Type:

HW Casing Shoe /Casing Bit

Use:

Mineral Exploration,Mineral Exploration

Product Name:

Core Drill Bits

Size:

AW BW, NW, HW,PW

Supply Ability:

Based on Detailed Order

Highlight:

diamond core drill bit

diamond products core bits

Product Description

Sinocoredrill Diamond Core Drill Bits HW Casing Shoes , High Penetration Rate

Casing shoe is used on the leading edge of a casing tube string to advance it through the overburden layer and into the bedrock by means of rotational drilling. Depending on the range of application, the cutting media on the core bit may take the form of synthetic diamond, tungsten-carbide particles or tungsten-carbide elements.

SIZE	OUTER DIAMETER		INNER DIAMETER		UNIT WEIGHT
SIZE	MM	IN	MM	IN	Kg
BW	75.82	2.985	60.20	2.370	0.91
NW	91.95	3.620	76.00	2.992	1.59
HW	117.65	4.632	101.09	3.980	2.27
HWT	117.65	4.632	100.84	3.970	2.27
PW	143.51	5.650	123.24	4.852	3.22

Specifications

AW BW, NW, HW,PW Casing Shoe

1. High penetration rate
2. High core recovery ratio
3. Long service life
4. Lower cost

Size Available:

Wireline Series: B,N,H,P

W Series: RW,EW,AW,BW,NW,HW,PW,SW,UW,ZW,HWT,PWT,BWS,NWS,HT,PT,SZ
Metric Series: 46,56,66,76,86,101,116,131,146
X Series: RX,EX,AX,BX,NX,HX,PX,SX,UX,ZX
All Chinese Sizes

Notice :

To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.

Size:
SINOCOREDRILL bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.

Crown Height:
SINOCOREDRILL offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.

Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.

Matrix:
SINOCOREDRILL impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.

Threads:

standard Q threads as well as thread types required by clients are available.

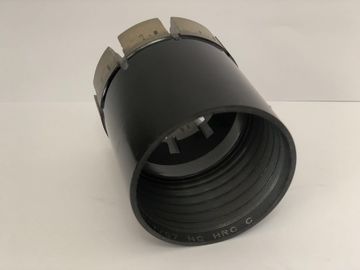

Diamond Core Drill Bits HW Casing Shoes Rod Shoe WIth High Penetration Rate 0

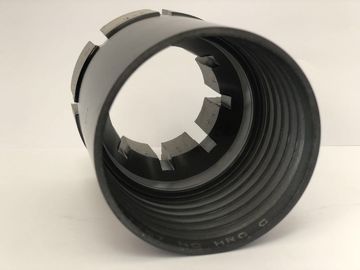

Diamond Core Drill Bits HW Casing Shoes Rod Shoe WIth High Penetration Rate 1
