Product Details:
|
| Power: | 4.42 Kw | Heating Plate: | 2.75 Kw |
|---|---|---|---|
| Planing Tool: | 1.1 Kw | Hydraulic Unit: | 0.75 Kw |
| Dielectric Resistance: | >1 MΩ | Max. Pressure: | 6 Mpa |
| Volume Of Oil Reservoir: | 3 L | ||
| High Light: | plastic tube welding machine,plastic pipe fusion welding machine |
||
This two Hdpe Pipe Butt Fusion Welding Machine, series type is BRHD-315 and BRDH-355, are manually 220V welding machine, both used for the welding job of plastic pipe which is made of PP, PVDF, PE and HDPE materials. The diameter range of BRDH-315 is from Φ 160mm to Φ 315mm. And the range of BRDH-355 is from Φ 200mm to Φ 355mm.
Specifications of fusion welding hdpe pipe
| Model | BRDH-315 | BRDH-355 | |
| Materials to apply | PE/PP/PVDF/HDPE | ||
| Range of diameters | 160/180/200/225/250/280/315 | 200/225/250/280/315/355 | |
| Environment temperature | - 5 to 45 ºC | ||
| Power supply | 220V/240V 50Hz/60Hz | ||
| Total power | 4.42 Kw | 5.05 Kw | |
| Include | Heating plate | 2.75 Kw | 3.2 Kw |
| Planing tool | 1.1 Kw | 1.1 Kw | |
| Hydraulic unit | 0.75 Kw | 0.75 Kw | |
| Dielectric resistance | >1 MΩ | >1 MΩ | |
| Max. pressure | 6 Mpa | 6 Mpa | |
| Volume of oil reservoir | 3 L | 3 L | |
| Max Temperature of heating plate | 270 ºC | 270 ºC | |
| Single effective cylinder area | 1000mm2 | 1000mm2 | |
| Net weight | 209 Kg | 209 Kg | |
Equipment characteristics
1. Apply to the pipe working job on site, for connecting PE/PP/PVDF/HDPE pipes. Also can be used to make pipe fittings in the workshop.
2. High reliability and exceptional design are used in sensors and several meters..
3. The sealing ring, the quick joint, and some valves use the imported parts.

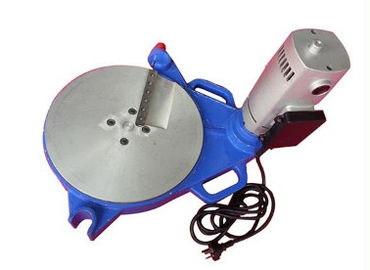

4. Use double-edge blade for cutting pipe, and an extra pair of blades are for free with the machine.
Related complete sets of equipment:
Application: The hdpe fusion machines can be used for welding pipes which are made of HDPE, PP, PP-R, PVDF materials and etc. Also the HDPE pipe butt fusion machine can be used both on site and inside. And the pipe diameters ranging from 160mm to 355mm.
