Product Details:
|
| Material: | Sythetic Diamond | Available Size: | BQ3, NQ3, HQ3, PQ3 |
|---|---|---|---|
| Crown Height: | 9mm, 10mm, 12mm, 14mm | Waterways: | 6/8/10 |
| Matrix Hardness: | F1-F14 | Crown Profile: | Standard / Serrated W |
| Waterway Configurations: | Standard | Color: | Black/ As Per Required |
| Use: | Mining Exploration, Geological Exploration | ||
| High Light: | diamond core drill bit,diamond products core bits |
||

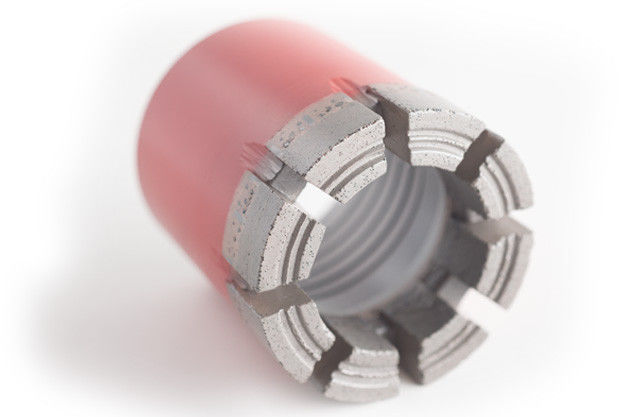

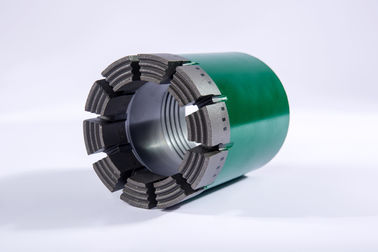

Sythetic Diamond Cutting Drill Bits, PWL3 (PQ3) 14mm Turbo Type High Speed Core Drilling Bits
Description of Goods
Bits are attached to the foremost part of the Core barrels to be used in direct drilling of the ground, and play the most important role among the equipments that are used in drilling. There are many types of bits classified and used according to the purpose of drilling or ground conditions, and the bits are also different in their material, shape, and performance.
Turbo type diamond core bit is best suited to formations that are hard to very hard under conditions that are solid or at most slightly broken. The Turbo (Style T) waterway configuration is not recommended for use in highly fractured formations.
Due to the reduced face contact area, core bits with the Turbo (Style T) configuration will generally cut with less than a core bit of equivalent size and manufactured with the Regular (Style W) configuration and will usually do so with an equivalent or higher rate of penetration.
As a result, there is less of a tendency for the drill hole to deviate due to the application of lower bit loads. The partial (turbo) waterways also assist in ejecting the fine cuttings that are created when drilling hard, consolidated, non-abrasive formations and prevent the build-up of slurry on the bit face during drilling.
Specifications
| Size | Bit O.D. Hole Diameter | Bit I.D. Core Diameter | Reaming Shell O.D. | |||
| INCHES | MM | INCHES | MM | INCHES | MM | |
| AQ | 1.870/1.880 | 47.50/47.75 | 1.057/1.067 | 26.85/27.10 | 1.885/1.895 | 47.88/48.13 |
| LTK48 | 1.870/1.880 | 47.50/47.75 | 1.384/1.394 | 35.15/35.41 | 1.885/1.895 | 47.88/48.13 |
| BQ | 2.340/2.350 | 59.44/59.69 | 1.428/1.438 | 36.27/36.53 | 2.355/2.365 | 59.82/60.07 |
| BQ3 | 2.340/2.350 | 59.44//59.69 | 1.315/1.325 | 33.40/33.65 | 2.355/2.365 | 59.82/60.07 |
| NQ | 2.960/2.970 | 75.18/75.44 | 1.870/1.880 | 47.50/47.75 | 2.975/2.985 | 75.57/75.82 |
| NQ2 | 2.960/2.970 | 75.18/75.44 | 1.990/2.000 | 50.65/50.80 | 2.975/2.985 | 75.57/75.82 |
| NQ3/NQTT | 2.960/2.970 | 75.18/75.44 | 1.770/1.780 | 44.96/45.21 | 2.975/2.985 | 75.57/75.82 |
| NMLC | 2.960/2.970 | 75.00/75.44 | 2.042/2.052 | 51.87/52.12 | 2.975/2.985 | 75.50/75.82 |
| HQ | 3.755/3.770 | 95.38/96.00 | 2.495/2.505 | 63.38/63.63 | 3.775/3.790 | 95.89/96.27 |
| HQ3/HQTT | 3.755/3.770 | 95.38/95.57 | 2.401/2.411 | 60.99/61.24 | 3.775/3.790 | 95.89/96.27 |
| PQ | 4.795/4.815 | 121.80/122.30 | 3.340/3.350 | 84.84/85.09 | 4.820/4.835 | 122.43/122.81 |
| PQ3 | 4.795/4.815 | 121.80/122.30 | 3.265/3.275 | 82.93/83.19 | 4.820/4.835 | 122.43/122.81 |
| T2-76 | 2.987/2.997 | 75.87/76.12 | 2.424/2.434 | 61.56/61.82 | 2.999/3.009 | 76.17/76.42 |
| T2-86 | 3.381/3.391 | 85.87/86.12 | 2.818/2.828 | 71.56/71.82 | 3.393/3.403 | 86.17/86.42 |
| T2-101 | 3.970/3.982 | 100.84/101.14 | 3.290/3.300 | 83.56/84.00 | 3.984/3.994 | 101.19/101.44 |
| T6-101 | 3.970/3.982 | 100.84/101.14 | 3.105/3.115 | 78.88/79.13 | 3.984/3.996 | 101.21/101.51 |
| T6-116 | 4.560/4.575 | 115.80/116.18 | 3.657/3.667 | 92.88/93.13 | 4.575/4.590 | 116.21/116.59 |
| T6-131 | 5.150/5.165 | 130.80/131.18 | 4.247/4.257 | 107.88/108.13 | 5.165/5.180 | 131.21/131.59 |
| T6-146 | 5.740/5.755 | 145.80/146.18 | 4.837/4.847 | 122.88/123.13 | 5.757/5.772 | 146.23/146.61 |
| HMLC | 3.858 | 98.00 | 2.500 | 63.50 | 3.878 | 98.50 |
Advantages
Through innovative products and service, Sinocoredrill has brought its customers the sustainable developed solutions that can improve their productivity. And through the close cooperation with customers and business partners, Sinocoredrill is making continuous innovation for achieving its goal of superior productivity.
Our Technician and manager groups are all with more than ten years’ experience on Developing, researching and producing exploration products. Owing to our products' excellent performance and very competitive pricing, we successfully minimized our every customer's drilling cost per meter.
The mission of the company is to provide high-quality drilling equipment that is good value for money and to help the clients to increase their profit in business.
Delivery
Warranty and Service
We always concerned about our clients and provides them with warranty and service support.
The factory ensures equipment warranty for the major assemblies and units efficient for 12 months. The clients are supplied with all needed spare parts, tooling and auxiliary facilities.
The authorized dealers possess service centers to execute product warranty liabilities, after-sales service and equipment repair. The clients’ staff is also provided with theoretical and practical company instructions and consultations on all matters concerning execution of work and equipment operation.
Q: What's your delivery time?
A: Commonly need 7 working days to produce. Within 3 days if in stock.
Q: What methods of payment are accepted?
A: We agree T/T, L/C, West Union.
A: Based on order quantity. We can send it to you by Express, by Air, by Sea, and by Train. Or send the goods to your Chinese agent.
Q: How to control the quality?
A: We check & test every core drill bit before shipment.
Q: Do you agree samle order?
A: Yes, we welcome your sample order for testing our quality.
Q: Can we select the color of the drill bit?
A: Yes, we have standard rock hardness select index to choose core drill bit matrix hardness. If you need, we can make the core drill bit color based on your requirement.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will compensate you during our warranty period. Any question or problem we will reply you within 24 hours.
Q: Can I trust your company?
A: Our company has been certified by Chinese government, and verified by ISO-9001, just order from us!
Thank you for your support and we look forward to your inquiry!
