Product Details:
|
| Type: | Spinlde Core Drill Rig | Drilling Depth(m): | 300m |
|---|---|---|---|
| Drilling Rod Diameter(mm): | 50mm | Spindle Stroke(mm):: | 530 |
| Head Angle RangeStandard Unit: | 0~360 | Cylinder Stroke(mm): | 400 |
| Weight: | 1200 Kg | Transportation Dimensions (LxWxH: | 2000x900x1600 |
| Highlight: | core drill rigs,diamond core drilling |
||

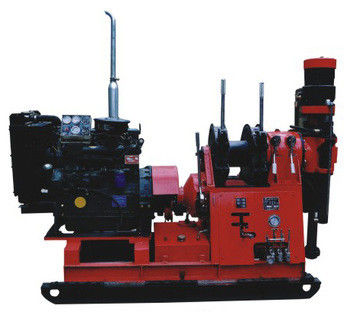

300m Hydrolic Chuck Spindle Mining Geological Core Drilling Machine
300A spindle core drill rig is widely used in the construction of the projects e.g.prospecting,railway,road port,bridge,water conservancy and hydropower,tunnel,well, industrial and civil construction,geological exploration,large diameter boring pile and small diameter diamond core deep hole drilling ,etc
Drilling depth(m): 300;
Spindle stroke(mm): 530;
Spindle driving force max. (KN): 40;
Spindle lifting power max. (KN): 60;
Single rope lifting power: 30;
Features:
Wide range of suitable rotary spped to meet various needs.
Common auto parts,such as clutch,transmission case and structure.
| Type | XZY-300 |
| Drilling depth(m) | 300 |
| Drilling rod diameter(mm) | Φ50 |
| Head angle range | 0-360° |
| Cylinder stroke(mm) | 400 |
| Spindle speed(r/min) | Clockwise:34,67,115,189,238,156,307,531,868,1094 anti-clockwise:38,173 |
| Spindle hole diameter(mm) | Φ65/Φ96 |
| Spindle output torque(N.M) | 3100 |
| Spindle stroke(mm) | 530 |
| Spindle driving force max(KN) | 40 |
| Spindle lifting power max(KN) | 60 |
| Lifting speed(m/s) | 0.30,0.59,1.01,1.66,2.09 |
| Single rope lifting power(KN) | 30 |
| Steel wire rope diameter(mm) | Φ13 |
| Mode of chuck | Hydrolic chuck or column chuck |
| Weight(power unit excepted)(kg) | 1200 |
| (LXWXH)(mm) | 2000x900x1600 |
| Diesel engine | 495D(26.5kw) |
| Electromotor | Y180L-4(22kw) |
