| Features: | Wear Resistant / High Fatigue Strength | Product Name: | HDD Drilling Tools |
|---|---|---|---|
| Type: | HDD Drill Rod | Material: | Baosteel |
| Usage: | Drill Pipe For Horizontal Directional Drilling Machine | Grade: | R780,G105 And S135 |
| High Light: | horizontal directional drilling tools,horizontal directional drill tool |
||

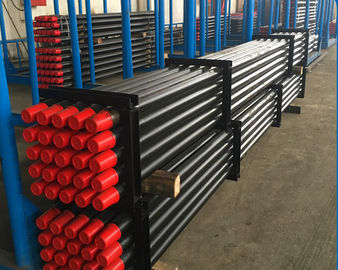

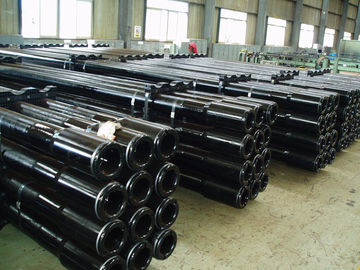

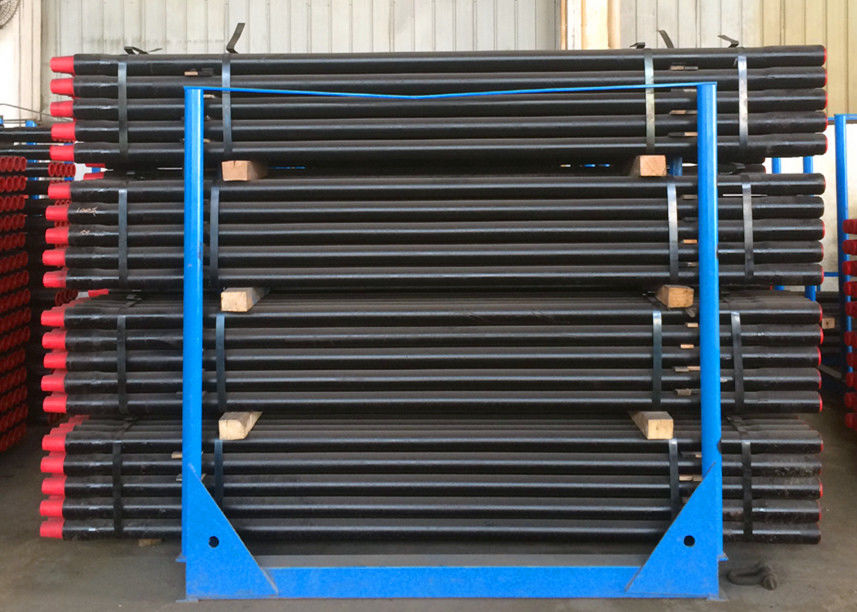

73mm / 89mm Forged One Piece HDD Drill Pipe

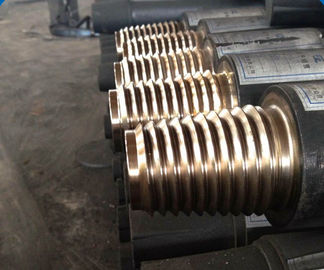

The HDD drill pipe is the most widely used. The pipe our company produces is mainly upsetted and thicked. The material of the pipe body is R780 or the high grade steel after hardening and tempering and the material of joint is generally 37 CrMnMo or 42 CrMo. OD of pipe body is between Φ 50-Φ 140.
We can provide all kind of products according to customer requirements.
Drill rods for HDD machine. High strength, high tenacity, high elasticity. Dia from 42mm to 140mm. Length from 0.5m to 9.6m. Steel grade: E75/R780,G105,S135 We can make the drill rods for Vermeer,Case,Ditch Witch, Drillto, Gudeng, Xugong HDD machines, such as D16X20, D24X40, D50X100, D75, D80, D100, D130, JT1720, JT2720, JT2720 March I, JT4020, JT7020, API NC23-NC50, etc.
| Size | Connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube | Wall Thickness | OD of the joints /upset | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | ( kg) | Grade | (m) | Nm | ||
| 50x2000mm | DH50 | 50 | 6.5 | 57 | 2000 | 20 | S135 | 29 | 3000 |
| 60X3000mm | DH60-1 | 60 | 6.5 | 66.7 | 3000 | 35 | S135 | 33 | 6300 |
| 60X3000mm | DH60-1 | 60 | 6.5 | 70 | 3000 | 35 | S135 | 33 | 6300 |
| 73X3000mm | NC23(DH23) | 73 | 7.5 | 80 | 3000 | 45 | S135 | 45 | 13000 |
| 73x3000mm | NC26(2 3/8IF) | 73 | 10 | 87 | 3000 | 55 | S135 | 51 | 16000 |
| 83X3000mm | D80 Firestick1 | 83 | 9 | 92 | 3000 | 58 | S135 | 65 | 18000 |
| 83x4500mm | D80 Firestick1 | 83 | 9 | 92 | 4500 | 84 | S135 | 65 | 18000 |
| 89X4500mm | NC31(2 7/8IF) | 89 | 10 | 104.8 | 4500 | 100 | S135 | 72 | 24000 |
| Model Of the rig | Connection | Dimension of the drilling Pipe | Tempering and Quenching | Min Bending Radius | Max Torque | ||||
| OD of the Tube | Wall Thickness | OD of the joints /upset | Working Length | Weight | |||||
| (mm) | (mm) | (mm) | (mm) | ( kg) | Grade | (m) | Nm | ||
| D7×11, D9X13 | Firestick 1 | 42 | 6.5 | 48 | 1829 | 12 | S135 | 29 | 2000 |
| D10X14,D10X15 | Firestick 1 | 42 | 6.5 | 48 | 3048 | 20 | S135 | 29 | 2000 |
| D16×20,D18×22 | Firestick 1 | 48 | 6.5 | 54 | 3048 | 23.5 | S135 | 30 | 3000 |
| D24X26 | Firestick 1 | 54 | 7 | 57 | 3048 | 25 | S135 | 31 | 4000 |
| D24×40 | Firestick 1 | 60.3 | 7.5 | 66.7 | 3048 | 35 | S135 | 33 | 6300 |
| D40X40 | Firestick 1 | 60.3 | 7.5 | 66.7 | 4572 | 50 | S135 | 33 | 6300 |
| D33×44, D36×50 | Firestick 1 or 2 | 60.3 | 7.5 | 70 | 3048 | 36 | S135 | 33 | 6772 |
| D33×44, D36×50 | Firestick 1 or 2 | 60.3 | 7.5 | 70 | 4572 | 51 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 60.3 | 7.5 | 70 | 3048 | 36 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 60.3 | 7.5 | 70 | 4572 | 51 | S135 | 33 | 6772 |
| D36×50 | Firestick 1 | 66.7 | 8 | 78 | 3048 | 40 | S135 | 40 | 9000 |
| D36×50 | Firestick 1 | 66.7 | 8 | 78 | 4572 | 55 | S135 | 40 | 9000 |
| D50×100/Uni60x70 | Firestick 1 | 73 | 10 | 83 | 3048 | 55 | S135 | 51 | 16000 |
| D50×100 | Firestick 1 | 73 | 10 | 83 | 4572 | 78 | S135 | 51 | 16000 |
| D50X100/D80×100 | Firestick 1 | 89 | 10 | 92 | 4572 | 96 | S135 | 72 | 18000 |
| D100×120 | Firestick 2 | 89 | 10 | 104 | 6096 | 130 | S135 | 72 | 24000 |
| D100×120 | Firestick 1 | 89 | 11.5 | 111.5 | 6096 | 150 | S135 | 80 | 27000 |
