Transmitter Housings HDD Drilling Tools For Horizontal Directional Drilling Rigs

Brand Name:	SINOCOREDRILL
Model Number:	66MM 89MM 110MM
MOQ:	N/M
Packaging Details:	Standard Seaworthy packing
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ISO9001

Type:

Assembly Of Transmitter Housings

Diameter:

66MM 89MM 110MM

Sonde Digitrack:

31.8 × 381 Mm / 31.8 X 482.6 Mm With Cable And Battery

Application:

Designed For Pilot Bore Drilling

Color:

Material:

Steel

Machine:

RX11 RX22 RX33 RX44 RX77 ..HDD Rig

Highlight:

horizontal directional drilling tools

no-dig tools

Product Description

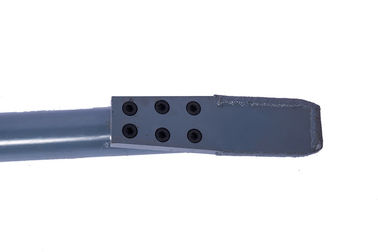

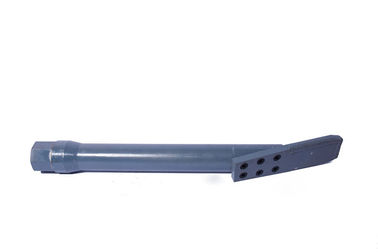

Assembly of Transmitter Housings For Horizontal Directional Drilling Rigs

We offers a complete line of transmitter housings, tail pieces, and replacement parts for use on all Ditch Witch and Vermeer rig models.

All transmitter housings are compatible with all styles of OEM type bolt-on pilot/paddle bits.

Tail pieces are available for use with all housings. Tail pieces are designed to increase the longevity of the housing.

Features:

super strong alloy steel lasts through tough drilling conditions
convenient side-load access
accepts OEM-compatible bits
replaceable nose piece
case-hardened steel
1/8" larger than housing to minimize wear
variety of jet sizes

Assembly of Transmitter Housing (standard)

Designed for pilot bore drilling

Part number	FORWARD HDD rig	Sonde DIGITRACK	Diameter, mm
03-01-011-21-0200	RX11×44	31.8 ×381 mm	66mm
03-01-022-21-0200	RX22×80/RX33×120	31.8 ×381 mm	89 mm
03-01-044-21-0200	RX44×160	31.8×381 mm and 31.8×482.6 mm with cable and battery

Assembly of Transmitter Housing (for octagonal coupling)

Designed for pilot bore drilling

Part number	FORWARD HDD rig	Sonde DIGITRACK	Diameter, mm
03-01-011-21-0210	RX11×44	31.8 ×381 mm	66mm
03-01-022-21-0210	RX22×80/RX33×120	31.8 ×381 mm	89 mm
03-01-044-21-0210	RX44×160	31.8×381 mm and 31.8×482.6 mm with cable and battery
