Wireline Fishing Tools Ezy Lock Overshot Complete Assembly bq nq hq pq
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: Certification: ISO9001、 CE
Model Number: BWL NWL HWL PWL
High Light:

drilling rig parts

,

wireline core drill parts

Payment & Shipping Terms
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T, L/C
Specifications
Type: Overshot Assembly
Size: BQ NQ HQ PQ
Material: Steel Alloy
HS Code: 8207191
Standard: Boart Longyear DCDMA
Product Description

Wireline Fishing Tools Ezy Lock Overshot Complete Assembly bq nq hq pq



Overshot is a necessary device in wireline drilling. It's dropped on a cable and directly couples onto and lift up the inner tube assembly, eliminating the need to couple and uncouple the rod string each time the core is retrieved.



Ezy Lock Overshot is a modified product based on compact overshot. It protects against accidental release of the core barrel. This is ideal for suface application when hoisting above ground.





Overshot is a key component of wire-line coring systems. To retrieve the core sample, the overshot is lowered into the hole on a wire cable until it comes in contact with the spearhead point on the head assembly. Positive latching lifting dogs securely attach, and the inner tube assembly is pulled from the hole to retrieve the core.





Features:



• Ezy Lock Sleeve provides a quick, one-handed rotation of the sleeve to lock the lifting dogs.



• Quick Release Safety Pin locks the overshot head to the spearhead point.

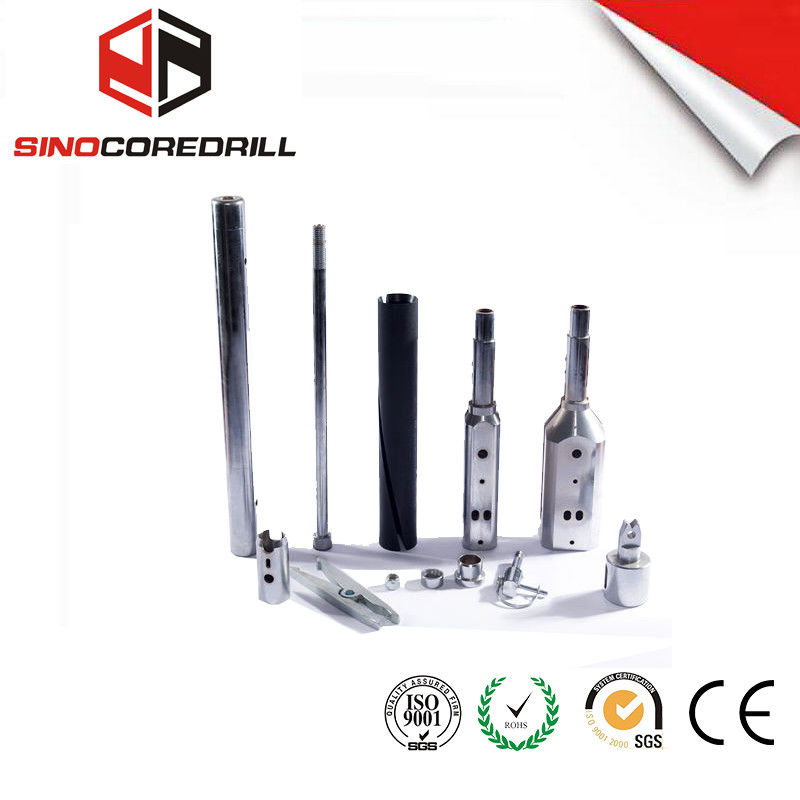

B /N / H/ P - WL Overshot Spare Parts



Item Part No. Description Qty/pc Weight
1 D-01 Eye Bolt 1 0.11
2 D-02 Cable Swivel Colar 1 0.11
3 D-03 Thrust Bearing 1 0.01
4 D-04 Castle Nut 1 0.02
5 D-05 Cotter Pin 3.2×20 1 0.01
6 D-06 Cable Swivel Body 1 7.23
7 D-07 Locking Sleeve 1 1.56
8 D-08 Jar Tube 1 2.81
9 D-09 Jar Staff 1 1.02
10 D-10 Nut 3/4-10 uncap 1 0.05
11 D-11 Cap Ezy Lock 1 0.09
12 D-12 Spring Ezy Lock 1 0.03
13 D-13 Sleeve Ezy Lock 1 0.36
14 D-14 Overshot Head Ezy Lock 1 2.66
15 D-15 lock Nut m10×12 1 0.01
16 D-16 Spring 1 0.01
17 D-17 Stainless Ball φ9mm 1 0.02
18 D-18 Lifting Dog 1 0.27
19 D-19 Spring 1 0.01
20 D-20 M6 Greasing Fitting 1 0.01
21 D-21 Pin φ13×50 1 0.03
22 D-22 Pin φ6×50 1 0.01

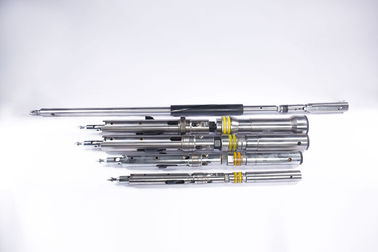

Wireline Fishing Tools Ezy Lock Overshot Complete Assembly bq nq hq pq 0

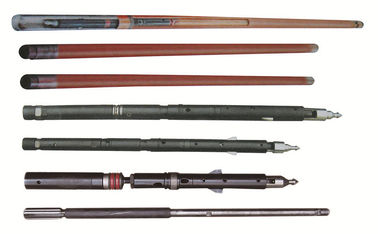

Wireline Fishing Tools Ezy Lock Overshot Complete Assembly bq nq hq pq 1

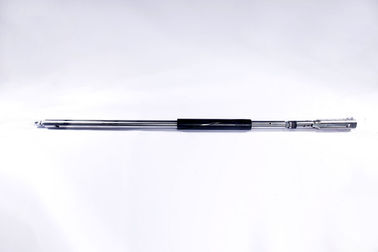

Wireline Fishing Tools Ezy Lock Overshot Complete Assembly bq nq hq pq 2
