Product Details:
|
| Type: | DRILLING ROD | Material: | 30CrMnSia XJY850 |
|---|---|---|---|
| SIZE: | BWL NWL HWL PWL | Length: | 3m 1.5m |
| Standard: | DCDMA | Country: | China |
| High Light: | drill extension rod,oil hardening drill rod |
||

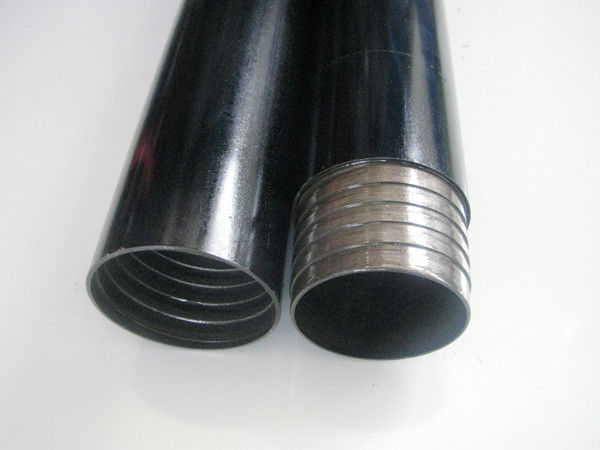

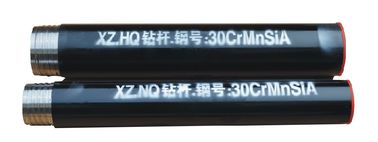

(HQ) Drill Rod Φ88.9X77.8X5.5 Wireline Drill Rod for drilling rig
Sinocoredrill WIRELINE drill rods are manufactured from the best quality cold drawn seamless steel tubes. Ultimate tensile strength, high precision and straightness more than 1:1800mm provide the best performance under the most demanding drilling conditions.
Our drill rods(HQ DRILL ROD) are all manufactured by CNC machines. They're made of high quality alloy steel with heat-treated. We also can produce various sizes of casing tubes. Our NC&HC (HQ)drill pipe/drill rods got most praise from oversea market.
The tapered (conical) threads lock secure, couple and uncouple easy and they perfectly mate eliminating leakage of drill fluids.
Hard chrome plating on box ends protects thread connection and increases its wear resistance and rods life. Alternatively, both ends may be case hardened with nitriding, if requested.
All WIRELINE drill rods are flush jointed.
Suitable for deep hole drilling and available in sizes P, H, N, & B-WL.
| Specifications about HQ drill rod (mm) | |
| Rod OD/ID (mm ) | 89/77.8 |
| Rod length (m) | 1.5 or 3 |
| Rod thickness | 5.6 |
| Rod Weight (kg/m) | 11.51 |
| Thread length (mm) | 44.45 |
| Thread pitch (thread/inch) | 3 |
| Box thread tooth height | 0.76 |
| Pin thread tooth height | 0.88 |
| Thread tooth angle (°) | 29° |
| Tensile resistance (KN) | 510 |
| Bore depth (m) | 900 |
| Material | 30 CrMnSiA |
| Heat treatment | Entire-length or ends thermal processed |
| Maximum torque (kN.m) | 1356 |
| Maximum tension strength(KN) | 400.3 |
| Maximum tensile strength(MPA) | 960 |
| Maximum core depth (m) | 1500-1800 |
HQ drill rod Technical Specification:
|
Basic Parameters |
|||||||
|
Theory Drilling depth |
1500m |
||||||
|
Outer diameter |
88.9mm |
||||||
|
Inner diameter |
77.8mm |
||||||
|
Length |
3m/10ft; 1.5m/5ft |
||||||
|
weight for 3 meter length HC drill pipe |
35 kg/pcs (3m) |
||||||
|
Raw Material steel grade |
XJY850 |
||||||
|
Standard |
GB/T816-2008 |
||||||
|
Treatment |
Heat treatment the whole pipe |
||||||
|
Mechanical property |
|||||||
|
|
|
XJY850 |
|||||
|
Tensile strength (MPa) |
|
1060 |
|||||
|
yield strength (MPa) |
|
1000 |
|||||
|
Elongation after Ultimate strength % |
|
18 |
|||||
|
Surface hardness(Brinell) |
|
270~295 |
|||||
|
Eccentricity (Radial run-out) |
|
8% of pipe thickness |
|||||
|
Chemical composition % |
|||||||
|
|
XJY850 |
||||||
|
|
|
|
|
C |
0.4 |
S |
0.005 |
|
|
|
|
|
Si |
0.21 |
Ni |
0.004 |
|
|
|
|
|
Mn |
0.67 |
Cr |
1.05 |
|
|
|
|
|
P |
0.009 |
Cu |
0,05 |
|
|
|
………….. |
|
Mo |
|
………….. |
……………. |
| Rods Specification: | |||
| a. | Yield Strength: 865Mpa | ||
| b. | Tensile Strength: 960Mpa | ||
| c. | Elongation: 17.5% | ||
| d. | Pipe Body Hardness: 30/31 HRC | ||
| e. | Thread Body Hardness: 50HRC above,Both Male and female Threads are Nickel Phosphorus Coating | ||
| f. | Pipe life designed for 7000meters | ||
|
Technical Parameters of Wireline Drill Rod: |
|
|
|
||||
|
No Size |
Drill rod OD mm |
ID mm |
|
Thread type |
Heat treatment |
Raw material |
Designed hole depth |
|
1 |
S56 |
53 |
44 |
China standard |
|
|
1000m |
|
2 3 |
S59 S75 |
55.5 71 |
46 61 |
China standard |
|
45MnMoB |
1000m 1002m |
|
4 |
S95 |
89 |
79 |
China standard |
|
|
600m |
|
5 6 |
S75AS95A |
|
61 79 |
|
heat treatment the Thread |
45MnMoB |
1500m 1300m |
|
7 8 9 |
CBH CNH CNH (T) |
Both side were enhanced |
44 61 61 |
Factory standard |
Heat treatment the whole pipe |
30CrMnSiA XJY850 |
2500m 2300m 3000m |
|
10 |
CHH |
|
78 |
|
|
30CrMnSiA |
1800m |
|
11 |
CSH |
127 |
114.3 |
|
|
S135 |
3000m |
|
12 |
BQ |
55.6 |
46 |
|
|
|
2000m |
|
13 |
NQ |
70.5 |
60.5 |
DCDMA |
Heat treatment the whole |
ZT850 |
2000m |
|
14 |
HQ |
89 |
77.8 |
standard |
pipe |
|
1500m |
|
15 |
PQ |
114.3 |
103.2 |
|
|
ZT520 |
800m |
The standard effective lengths are 3.0 & 1.5 meters. Other lengths may be manufactured upon request.
All rods have right hand threads. Left hand threads can be manufactured if requested.
SINOCOREDRILL specializing in the design and manufacture of premium diamond drilling tools for the world engineering: geotechnical exploration, Mining exploration, Oil exploration and hydrapower station grouting project ( wireline core drilling and double-tube core drilling). We could supply the premium quality and quick service.
1.Drill rod:BQ,NQ,HQ,PQ, NW HW
2.Core barrel: BQ NQ NQ2 NQ3 HQ HQ3 PQ PQ3 & head assembly and assembly
3.BQ,NQ,HQ,PQ, T2, T6 etc. Diamond core bit, reaming shell & shoe bit (syn. and surface-set, PDC)
4.Drill tool: hoisting plug, water swivel, overshot, outer tube & inner tube wrench, foot clamp,etc.
