|Drilling Depth(m):||30-600m||Drilling Angle:||0-360|
|External Dimension(mm):||2120*830*1560||Weight(Exclusive Of Power) KG:||1000|
|Spindle Speed(rmp):||22kw,1470rmp||Spindle Stroke(mm):||500|
|Maximum Torque Of Spindle (NM):||2760||Maximum Pull Force Of Spindle (KN):||60|
|Maximum Pressing Force Of Spindle (KN):||45||Spindle Inner Diameter(mm):||Φ63|
|Maximum Lifting Capacity (KN):||30|
core drill rigs,
diamond core drilling

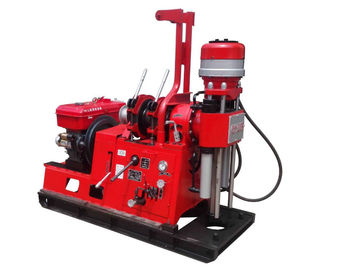

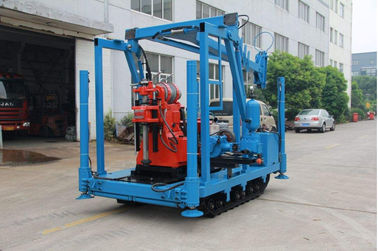

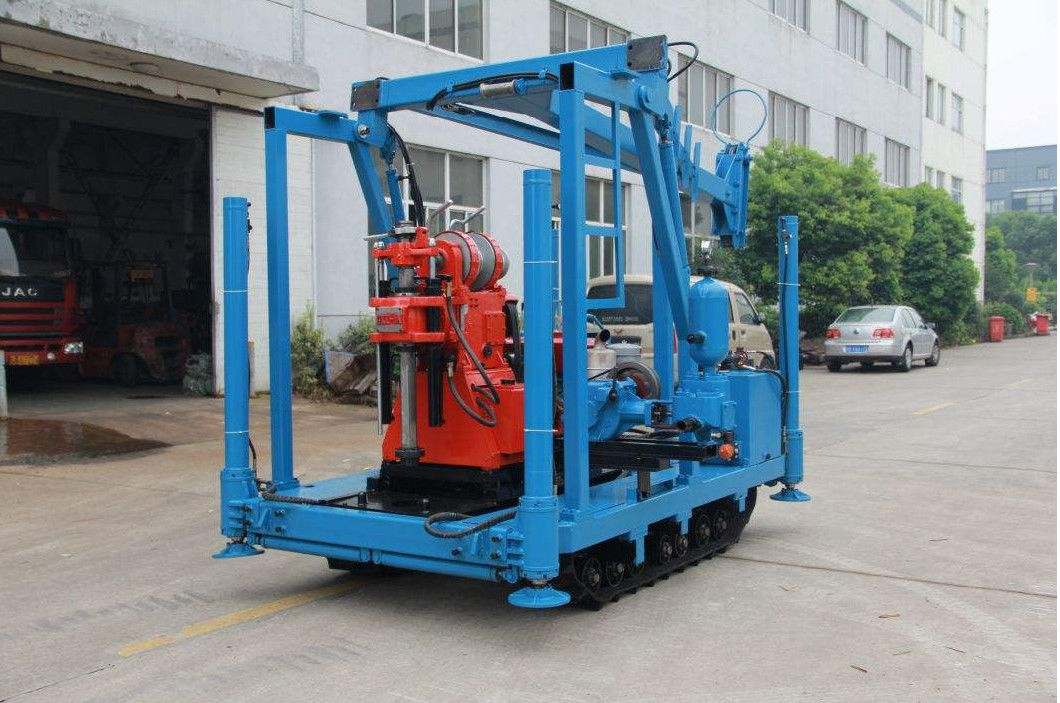

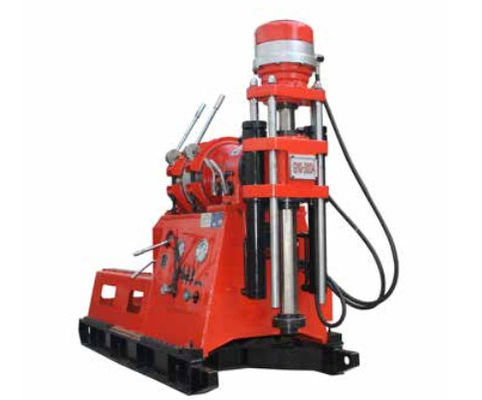

Large power Core drilling rig of Spindle Speed(rmp) 22kw 1470rmp, drilling depth up to 600 meters
GYQ rig is applicable to the industrial and civil building, the geological survey for the projects such
As highway, railway, bridge foundation, dam site, water conservancy, well, and mine exploration, as well as ventilation and drainage construction of mine opening.
1. Select a reasonable speed range, the number of speed stages has eight levels, centralized shifting, self-locking, low speed torque, wide range of use. It is suitable for both engineering team re-exploration and diamond core drilling.
2. The rig has two reverse speeds for safe handling of faults.
3. The gyrator chuck adopts two types of manual ball chuck and automatic centering hydraulic chuck for users to choose.
The GYQ-300B is a manual ball type, which is reliable in clamping and does not hurt the active drill pipe. It can be used without stopping the bar.
The GYQ-300B is a hydraulic chuck type that can be clamped with a hexagonal active drill pipe or a round drill pipe.
4. With enough instruments, it is good for grasping the situation inside the hole, less control handle, reasonable layout, flexible and reliable operation.
5. The double-plate normally closed friction clutch is adopted, which is flexible to open and close, and is convenient to adjust and use.
6. GYQ-300B drilling rig has large vertical hole and reaches Φ63mm. It can be used for rotary spraying with Φ60 double drill pipe.
7. The front and rear moving cylinders are installed, and the gyrator moves backwards by 465 mm, which brings a lot of convenience to the lower drilling tools.
8. The rig is light in weight, compact in structure, convenient in disassembly and assembly, and can be used for drilling in hills or mountains.
|Weight(Exclusive of Power) KG||1000|
|Maximum Torque of Spindle (NM)||2760|
|Maximum Pull Force of Spindle (KN)||60|
|Maximum Pressing Force of Spindle (KN)||45|
|Spindle Inner Diameter(mm)||Φ63|
|Maximum Lifting Capacity (KN)||30|
Q:Are you trading company or manufacturer ?
A: We are a specialized manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
T/T, L/C, Western Union.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
A: Min. order quantity: 1 piece. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promote technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in Jiangyin city,Jiangsu province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Sinocoredrill usually makes a serious inspection for all products and raw materials in strict procedure
