Double Tube Core Barrel Wireline Core Barrel Core Lifter LTK60 Thin Wall Wireline
N/A
MOQ
Double Tube Core Barrel Wireline Core Barrel Core Lifter LTK60 Thin Wall Wireline
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Model Number: LTK48
High Light:

drilling rig parts

,

wireline core drill parts

Payment & Shipping Terms
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Specifications
Type: Thin Wall Wireline Core Barrel
Size: LTK48
Available Sizes: 48;60mm
Ground Formation: Medium To Extra Hard Rock Formations
HS Code: 8207199000
Certification: ISO,CE
Product Description

LTK60 Thin Wall Wireline Core Barrel Core Lifter Drilling Rig Parts



Description:



LTK48 LTK60 double tube core barrel

Core Barrels include single tube type, double tube type and triple tube type.

The LTK series core barrels system is a thinner wall core barrel than T2 series. They offer a cost effective, high production, which is designed for optimum production and core recovery in medium to extra hard rock formations.
Available sizes 48 and 60mm.



---TT Series Core Barrel
Ultra-thin walled double tube core barrels, available diameters 46 and 56 mm. Very
thin cutting face allows very rapid rate of penetration through hard formations. They are
suitable forunderground mining applications.

---T2 Series Double Tube Core Barrels
The T2 Series are thin wall double tube core barrel, used for surface exploration, especially mining applications.
Due to their thin kerf, these core barrels provide rapid penetration. Available in diameters 46, 56, 66, 76, 86, 101mm.

---T6 Series Double Tube Core Barrels
These are a continuation of the T2 series, but of a sturdier design and available in larger diameters,
76, 86, 101, 116. 131 and 146mm. They are applied in surface mining and geotechnical drilling.

---LTK 48 & LTK 60 Double Tube Core Barrels
The LTK series core barrels system is a thinner wall core barrel than T2 series. They offer a cost effective,
high production, which is designed for optimum production and core recovery in medium to extra hard rock formations.
Available sizes 48 and 60mm.

---WF Series Double Tube Core Barrels
They are geotechnical core barrels primarily designed for coring relatively soft formations in using face-discharge bits.
Simple construction and more resilient to damage than thin-wall barrels, but with slower enetration rate.

---WG Series Double Tube Core Barrels
There are single tube core barrels for WG series. Available in DCDMA sizes E, A, B, N, and H.

---TBW and TNW Core Barrels
These are thin-walled double tube core barrels, as T2 series but with DCDMA hole sizes B and N.
Used for surface exploration, specially mining applications. The thin kerf area allows rapid penetration.

---Wireline Double Tube Core Barrels
Wireline double core barrels are primarily used in deep coring. With an overshot device,
they eliminatethe need to couple and uncouple the rod string each time the core is retrieved.
Available in DCDMA sizes A, B, N, H ,and P.

---Chinese Standard Double Tube Core Barrels

---Chinese Standard Wireline Double Tube Core Barrels

---Jet-type Reverse Circulation Double Tube Core Barrels


Triple Tube Core Barrels


---MLC (Triefus) Series Core Barrels
These triple tube core barrels are generally used for geotechnical purpose, designed to maximize core recovery
in soft formations. Available diameter sizes from 35-146mm.

---Wireline Triple Tube Core Barrels
Wireline triple tube core barrels are generally required in broken, fractured formations. They incorporate a third,
split inner tube on base of wireline double tube core barrel. This can be pumped out of the inner tube after retrieval,
allowing the core to be examined in its in-situ state.

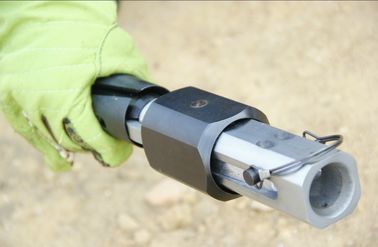

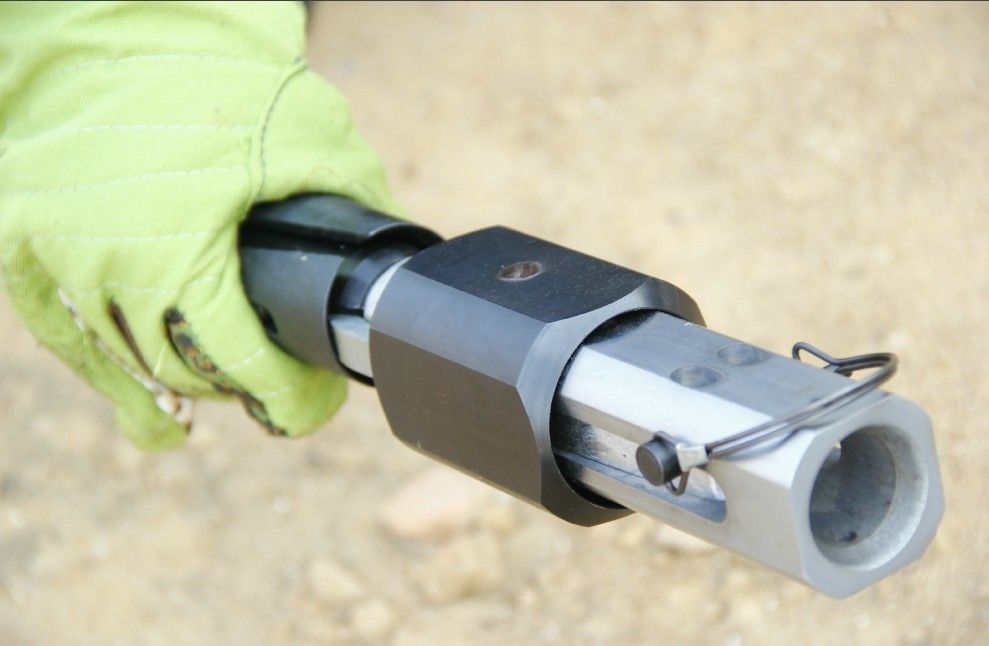

Double Tube Core Barrel Wireline Core Barrel Core Lifter LTK60 Thin Wall Wireline 0

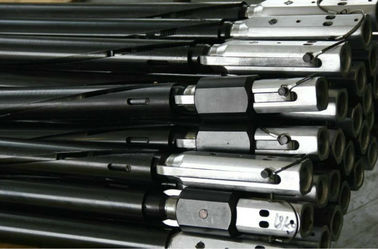

Double Tube Core Barrel Wireline Core Barrel Core Lifter LTK60 Thin Wall Wireline 1
