Rotary CPT Crawler Cone Penetration Test Apparatus 49L Diesel Tank Capacity
N/M
MOQ
Rotary CPT Crawler Cone Penetration Test Apparatus 49L Diesel Tank Capacity
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Certification: ISO9001
Model Number: DYLC-X20
High Light:

cone penetrometer apparatus

,

cone penetration apparatus

Payment & Shipping Terms
Packaging Details: Stand Exporting Package
Delivery Time: 2 WEEKS
Specifications
Type: CPT Static Cone Penetrometer
Engine: Four-cylinder Diesel Engine Water Cooling
Rated Power: 37KW-2300r/min
Weight: 5.8T
Anchor Diameter (mm): 300~400
Working Environment Temperature: –25 C°-45C°
Product Description

Technical Specification For DYLC-X20 Crawler CPT Equipment



Description:



DYLC-X20 has top quality of full hydraulic engineering crawler chassis, which engine and hydraulic valve parts and other components are from famous enterprises both at domestic and abroad to ensure the stable and reliable performance of the equipment and timely after-sales service. Advanced hydraulic technology, using split-type combined multi-way reversing valve, has such good qualities, as compact structure, small size, convenient installation and maintenance, low pressure loss, good overload characteristics of overflow valve.Strong passability can carry out cone penetration operations in harsh environments such as beaches, river beaches, sand, snow, icy roads, paddy fields and muddy.

This cpt equipment can be used more than one machine. It is not only the ideal equipment for cone penetration testing. With accessories can be extended for in-situ soil test, such as CPTU, PMT, DMT, VST, WVT.

Max feature: Rotating cone penetration, rotary full hydraulic self-propelled anchor.

The industry's original of rotary cone penetration device (Patent No.: 201620301466.X) is specially designed for deep hole cone penetration, which configured with accessory can make the casing water injection rotary and ensure the casing can easily reach the desired depth; Rotary full hydraulic self-propelled anchor (Patent No.: 201220081488.1 and 201220081492.8), configured with the core tube and drill bit can be used to open the hardened road surface such as concrete) and the automated handling device (patent number: 201220382939.5), which is highly efficient and durable. The structure is simple and convenient.

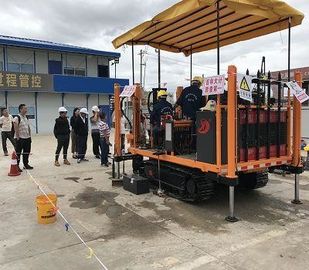

Rotary CPT Crawler Cone Penetration Test Apparatus 49L Diesel Tank Capacity 0

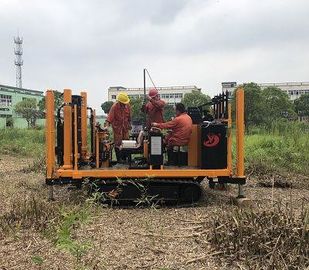

Rotary CPT Crawler Cone Penetration Test Apparatus 49L Diesel Tank Capacity 1



Main Technical Specification:



Chassis: Full hydraulic engineering crawler chassis

Chassis drive: Original imported hydraulic travel motor (international common use).

Chassis specification: Engineering rubber Chassis.

Engine: Four-cylinder diesel engine water cooling

Diesel tank capacity (L): 49

Rated power - speed: 37KW-2300r/min

Hydraulic cylinder device: Rated penetration force 100~200KN, Rated extraction force 130~230KN, 550mm or 1150 mm stroke for fast rise and direct casing

Box form: top of the box is hydraulically lifted, and the four sides of can be opened and closed.

Probe tube form: Mechanical probe holder or pad plug-in

Anchorage: Double force cpt equipment anchoring device

Truck handling and horizontal form: 4 hydraulic legs, 1500mm stroke controlling way is optional.

Transport profile size: 3900×1900×2600 (L×W×H)mm

Weight: 6T

Hydraulic oil cooling form: Air cooled

Hydraulic tank capacity (L): 170

Speed: 1~4(km/h)

Walking slope: ≤30°

Working environment temperature: –25 C°-45C°

Ground anchor form: Single or multi-leaf anchor

Anchor diameter (mm): 300~400

Matching probe: 10cm2 or 15cm2 of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ32~Φ42 (optional).
