Truck Mounted Multi Function Engineering Rig M50 50m SPT Drilling Construction
Negotiable
MOQ
Negotiable
Price
Truck Mounted Multi Function Engineering Rig M50 50m SPT Drilling Construction
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Sinocoredrill
Certification: CE ,ISO9001:2008
Model Number: M50
High Light:

core drill rigs

,

diamond core drilling

Payment & Shipping Terms
Packaging Details: STANDARD EXPORT SEAWAY PACKAGE
Delivery Time: 2 MONTH
Specifications
Type: Truck Mounted Multi-Function Engineering Rig
Application: SPT Drilling
Model: M50
Drilling Depth: 50m
Hole Diameter: 50-150mm
Dimession: 5825*1995*2680mm
Weight: 3900kgs
Diesel: 8.8/2000 Kw R/min
Product Description

Truck Mounted Multi-Function Engineering Rig M50 50m SPT Drilling Construction





This Rig generally has the functions such as rotary drilling ,percussive drilling ,vibrating drilling and static pressure soil taking ,and make form the complex drilling function with different composition





1. M50 can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, blast hole, etc.


2. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving


3. The rig is a truck mounted top head drive drill, it is mechanical drive and hydraulic fed.




Function:





1. M50 is mechanic driven and hydraulic fed .


2. It is a truck mounted top head drive drill. It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving .


3. It also can be used as the core drilling rig with the mud pump, It can be used for rotary , percussive, vibratory and static press-in as well as pressure soil sampling and pipe diving


4. Its design is advanced, reasonable and its operation is easy and reliable.



Hole depth 50m Initial hole dia 50-150mm

Central opening dia



172mm
Speed(forward and reverse) 21;43;52;105;135;272rpm
Stroke 650mm
Max .lifting capacity 15KN
Max .feeding capacity 6KN
Hoist

Max .lifting capacity

(single line):

15KN
Lifting speed: 0.19;0.38;0.46;0.92;1.18;2.73m/s
Power Diesel engine 8.82kw,2000rpm
Drilling Tower Height 6.5m
Weight(including truck) 3900kg
Truck


JX1061TSG25  light-duty



Dimensions (L×W×H) 5825×1995×2680mm




Applications:

M50 is mainly used in engineering geological exploration and construction for highway, bridge, dam, and civil, industrial, national defence engineering,as well.

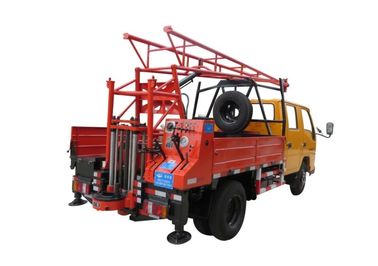

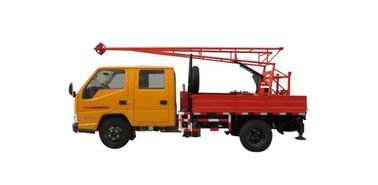

Truck Mounted Multi Function Engineering Rig M50 50m SPT Drilling Construction 0Truck Mounted Multi Function Engineering Rig M50 50m SPT Drilling Construction 1Truck Mounted Multi Function Engineering Rig M50 50m SPT Drilling Construction 2
