Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations Atlas Copco

Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations Atlas Copco
Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations Atlas Copco

Large Image :  Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations Atlas Copco

Product Details:
Place of Origin: CHINA
Brand Name: Atlas Copco
Certification: CE
Model Number: C6/C6C
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order

Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations Atlas Copco

Description
High Light:

core drill rigs

,

diamond core drilling



Flexible Core Drill Rig C6/C6C Core Drilling Rig For Various Drilling Operations

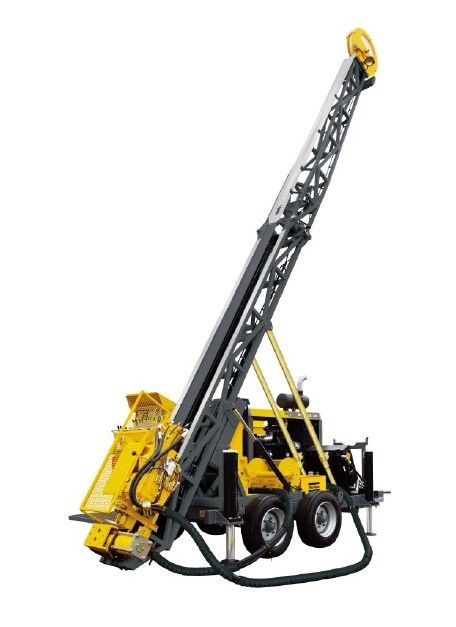

C6/C6C: Flexible surface core drilling rig  (second hand. )





The  C6 and  C6C models represent the most flexible drilling rig size in the Boyles range. They share the same depth capacity of 1 200 m and the powerful feed system, main winch and Tier III low emission engine to enable efficient deep drilling. These two models are differentiated by the mode of transport – the  C6 being trailer mounted, while theC6C is crawler mounted.



 Drilling rigs offer you  at a more favorable price than ever. You are offered a basic rig design that gives you everything that characterises  leadership: The power to take on any job with trouble-free operation year after year, paired with a highly competitive cost of ownership.






Features & benefits



  • Reliability and trouble-free operation. Each and every component of  rig is designed to withstand harsh
  • operational conditions with a minimum of service required.
  • The power to get any job done. The rig comes with a powerful, Tier III low emission engine that brings out the full capacity of the rig, giving you the power to get the job done.
  • Efficiency to collect more core per hour. The feed system is designed to optimize the penetration speed,
  • generating as much core result as possible.
  • Personal safety first. The rig is equipped with pressure rolls on the main hoist, automatic stop functions
  • on the drum and mast top, easily accessible emergency stops etc. All for the driller’s safety.
  • High usability lets you focus on the job at hand. All key components are accessible from a user-friendly
  • and intuitive control panel



Technical specification

Flexible enough to take on almost any job

The  C6 surface core drilling rig is part of the Boyles range, a new generation of  quality drilling rigs that combine productivity with a favorable life cycle cost.
 C6 represents the most flexible rig size in the Boyles range and is available in trailer-mounted ( C6) or crawler-mounted (C6C) versions.


Safe and ergonomic

• Two E stops on the drill unit are standard and  C6C has another E stop for the Radio Remote Control.
• Drill operators are protected from the rotation unit by a safety cage.
• Possible to operate by feel while focusing on the drilling operation, thanks to the operator friendly control panel.


Flexible drilling rig size

• Compact structure, giving excellent space utilization using fitted modules.
• Foldable 2-section mast simplifies short-distance transport of the rig.


Reliable and powerful

Both the C6 and  C6C are equipped with:
• A powerful main hoist.
• A rod holder with a long-life gas cartridge that handles rods from BO to PO size and casing up to HW.
• A proven and reliable rotation unit with 4-speed gear box that can generate the high rates of penetration with very high torque when it is required.
• A reliable power unit, Cummins QSB 6.7 Tier III (153 kW), which brings out the full capacity of the rig, resulting in higher penetration rates to the bottom of the hole.

Radio remote controlled ( C6C)

The tramming functions of the rig can be precisely controlled from a safe distance, eliminating the danger
of being on or next to the machine while in motion. If radio contact is lost, tramming will stop automatically.



Technical data

Technical Specifications
Depth capacity 1540 m
Product series Boyles
Height 10082 mm
Width 2602 - 2817 mm
Length 5302 - 6525 mm
Weight 7000 - 9000 kg
Rod pull length 6 m
Max torque 5113 Nm
Max speed 1300 rpm
Feeding length 3.5 mm
Drill Rod Size B-P
Main Hoist 80 kN
Hole diameter 48 - 122 mm





Capacity drilling depth


Boyles C6 and Boyles C6C

B Wireline 1540  m     /   N Wireline 1200  m
H Wireline 800    m     /   P Wireline 475    m



Weight

Boyles C6    incl. Trido140            7 000 kg   (15 430 lb)
Boyles C6C incl.  Trido140            9 000 kg  (19 838 lb)
