GXY-1 / GXY-1T Spindle Core Drilling Machine With Tower 150m 11kw

Product Details:

Place of Origin:	CHINA
Certification:	CE ISO 9001
Model Number:	GXY-1 / GXY-1T

Payment & Shipping Terms:

Minimum Order Quantity:	N/A
Packaging Details:	Sea Delivery Package
Delivery Time:	Based on Detailed Order
Payment Terms:	T/T, L/C
Supply Ability:	Based on Detailed Order

Contact Now

Detailed Product Description

Model:	GXY-1 / GXY-1T	Type:	Spindle Core Drill Rig
Drilling Depth:	150m	Drilling Diameter:	42mm
Max Torque Of Spindle:	1200kN	Weight:	650KG
Transportation Dimensions (LxWxH:	1980x970x1400mm
Highlight:	core drill rigs , diamond core drilling

GXY-1 / GXY-1T Spindle Core Drilling Machine With Tower 150m 11kw

GXY-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.

2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.

3. The drill is suitable in exploring core mine.

4. The drill is convenient for maintenance and repair for simple structure and reasonable layout.

5. Oening the clinostat, it is easy to lift and loose the drill.

Application:

1. Engineering geological exploration.

2. Survey and exploration of solid mineral deposit.

3. Exploring core mine.

4. Inspecting hole of various concrete stucture.

Hole depth	50m	Rod dia		150mm
Hole depth	150m	Rod dia		76mm
Hole angle(°)	360°
Spindle speed	Forward speed:61;163;338;654rpm
	Reverse speed:45rpm
Stroke of spindle	500mm
Max .lifting capacity	25KN
Max .feeding capacity	20KN
Max .distance from the spindle	500mm
Hoist	Max .lifting capacity (single line):		15KN
	Lifting speed:		0.2;0.52;1.05;2.06m/s
Power	Electric motor:		11kw,2200rpm
	Diesel engine		S1100 or S1100M
Weight	650kg
Dimensions (L×W×H)	1980x 970 x 1400 mm

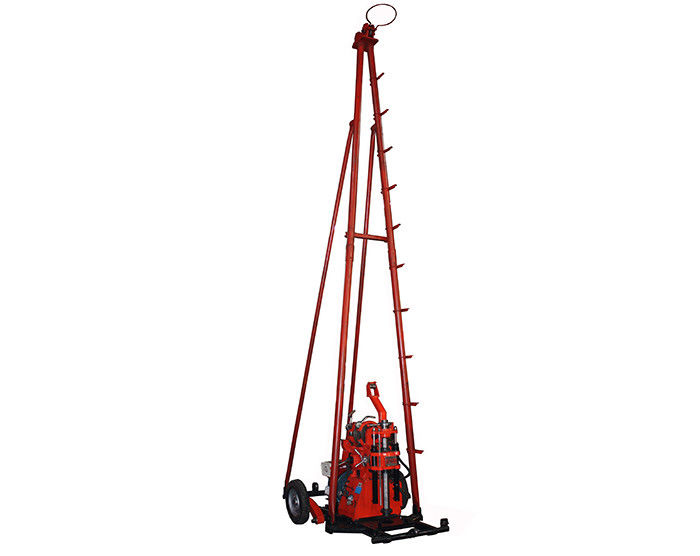

GXY-1 / GXY-1T Spindle Core Drilling Machine With Tower 150m 11kw 0

GXY-1 / GXY-1T Spindle Core Drilling Machine With Tower 150m 11kw 1

GXY-1 / GXY-1T Spindle Core Drilling Machine With Tower 150m 11kw 2
