Product Details:
|
| Features: | High Penetration Rate, High Speed,High Performance | Material: | Diamond |
|---|---|---|---|
| Type: | Impregnated Diamond Bits | Use: | Mineral Exploration |
| Product Name: | Core Drill Bits | Crown Height: | 14MM |
| Matrix Hardness: | Series 1~14 | ||
| Highlight: | core hole drill bits,diamond products core bits |
||

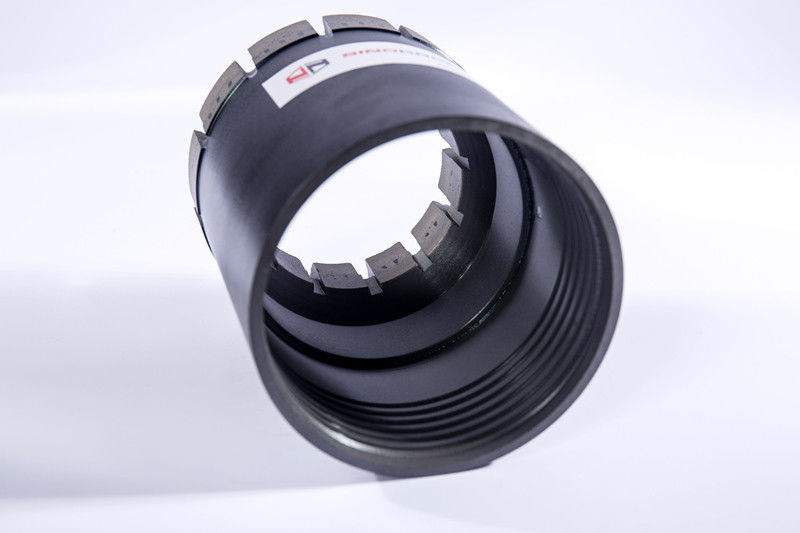

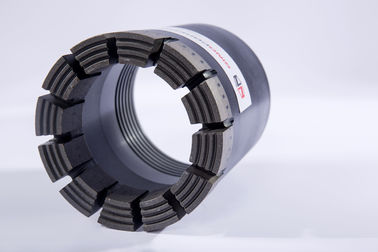

Core Drilling Accessories PWL / PWL3 Impregnated Diamond Core Cutting Drill Bits
Wireline core drilling systems are used for medium to ultra-deep boreholes, which provides the most efficient core sample extraction from the rock mass without pulling the entire drill string. The rock sample is removed from the bottom of the hole in the inner tube assembly by an overshot on a wireline cable.
Impregnated Diamond Core Bit is made with high quality synthetic diamonds, mixed evenly through a metal alloy matrix. Using hierarchical mole technology, to reduce the contact area of diamond bit matrix and the labial surface of the rock surface, and improve the drilling speed. The diamond bit mole with steel layer, to increase the pressure applied to the rock drill lip, improve the drilling speed of the drill bit. Put the first-grade abrasive-high strength, coarse grain diamond and two grade abrasives -low strength, fine grain
diamond in the diamond bit, to improve the life of diamond bit.
|
Size
|
PQ
|
Design |
DCDMA
|
|
Outer diameter MAX (mm)
|
122.30
|
Outer diameter MAX (in)
|
4.815
|
|
Outer diameter MIN (mm)
|
121.80
|
Outer diameter MIN (in)
|
4.795
|
|
Inner diameter MAX (mm)
|
85.09
|
Inner diameter MAX (in)
|
3.350
|
|
Inner diameter MIN (mm)
|
84.84
|
Inner diameter MIN (in)
|
3.340
|
|
Hole diameter (mm)
|
122.7
|
Hole diameter (in)
|
4.81
|
|
Core diameter (mm)
|
85.0
|
Core diameter (in)
|
3.34
|
|
Hole area (cm2)
|
117.2
|
Hole area (in2)
|
18.24
|
|
Core area (cm2)
|
56.7
|
Core area (in2)
|
8.76
|
|
System |
Fluid volume |
Rock hardness
|
Rotation Speed (rpm) |
Penetration speed (in/min-cm/min) |
Bit weight range | ||||||||||
| gpm | l/min | 200(r/in) | 250(r/in) | 80(r/cm) | 100(r/cm) | Lb | kg | ||||||||
|
BWL |
7.0-9.5 |
27-36 |
H | 1000 | 1400 | 5 | 7 | 4 | 5.6 | 12.5 | 17.5 | 10 | 12 | 5000-8000 | 2275-3650 |
| M | 1000 | 1200 | 5 | 6 | 4 | 4.8 | 12.5 | 15 | 10 | 12 | 3500-6000 | 1600-2725 | |||
| S | 800 | 1200 | 4 | 6 | 3.2 | 4.8 | 10 | 15 | 8 | 12 | 2500-3500 | 1150-1600 | |||
|
NWL |
9.5-12 |
36-45 |
H | 1000 | 1200 | 5 | 6 | 4 | 4.8 | 12.5 | 15 | 10 | 12 | 6000-8000 | 2725-3650 |
| M | 800 | 1200 | 4 | 6 | 3.2 | 4.8 | 10 | 15 | 8 | 12 | 4000-6000 | 1800-2725 | |||
| S | 600 | 1000 | 3 | 5 | 2.4 | 4 | 7.5 | 12.5 | 6 | 10 | 2500-3500 | 1150-1600 | |||
|
HWL |
12.0-14.5 |
45-55 |
H | 800 | 1000 | 4 | 5 | 3.2 | 4 | 10 | 12.5 | 8 | 10 | 6000-10000 | 2725-4550 |
| M | 600 | 1000 | 3 | 5 | 2.4 | 4 | 7.5 | 12.5 | 6 | 10 | 4000-8000 | 1800-3650 | |||
| S | 600 | 800 | 3 | 4 | 2.4 | 3.2 | 7.5 | 10 | 6 | 8 | 3000-6000 | 1350-2725 | |||
|
PWL |
20-30 |
75-110 |
H |
400 |
600 |
2 |
3 |
1.6 |
2.4 |
5 |
7.5 |
4 |
6 |
6000-12000 | 2725-5500 |
| M | 5000-10000 | 2275-4550 | |||||||||||||
| S | 300 | 500 | 1.5 | 2.5 | 1.2 | 2 | 3.75 | 6.25 | 3 | 5 | 4000-8000 | 1800-3650 | |||
