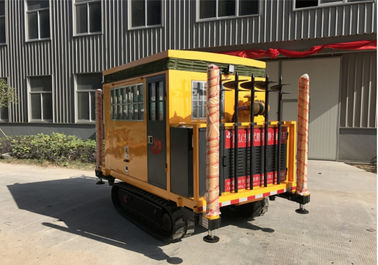

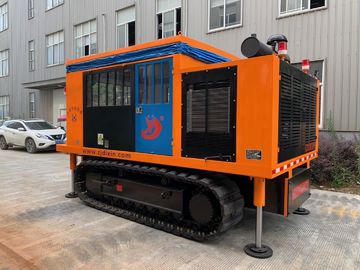

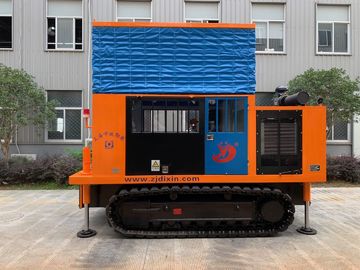

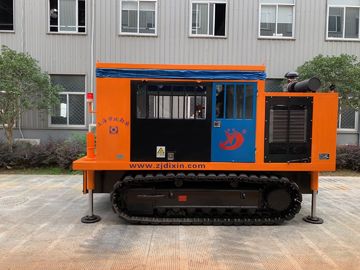

Percussion Hammer CPT Crawler Full Hydraulic Engineering Crawler Chassis

Technical Specification For DYLC-20 Crawler CPT Equipment

Description:

DYLC-P20 Crawler CPT has top quality of full hydraulic engineering crawler chassis, which engine and hydraulic valve parts and other components are from famous enterprises at domestic and abroad to ensure the stable and reliable performance of the equipment and timely after-sales service. Advanced hydraulic technology, using split-type combined multi-way reversing valve, has such good qualities, as compact structure, small size, convenient installation and maintenance, low pressure loss, good overload characteristics of overflow valve. Strong passability can carry out cone penetration operations in harsh environments such as beaches, river beaches, sand, snow, icy roads, paddy fields and muddy.

This cpt equipment can be used more than one machine. It is not only the ideal equipment for cone penetration testing. With accessories can be extended for in-situ soil test, such as CPTU, PMT, DMT, VST, WVT.

Max Feature:

Hydraulic crushing, rotary full hydraulic self-propelled anchorage. Quick opening for hardened roads and miscellaneous fills to first use hydraulic crushing device (patent no.: 201220081488.1) and core tube and drill bit (patent no.: 201220081492.8). Self handling device (patent number: 201220382939.5) is efficient and durable, simple structure, convenient and fast.

Main Technical Specification:

Chassis: Full hydraulic engineering crawler chassis

Chassis drive: Original imported hydraulic travel motor (international common use).

Chassis specification: Engineering rubber Chassis.

Engine: Four-cylinder diesel engine water cooling

Diesel tank capacity (L): 49

Rated power - speed: 37KW-2300r/min

CPT Hydraulic cylinder device: Rated penetration force 100~200KN , Rated extraction force 130~230KN, 550mm or 1150 mm stroke for fast rise and direct casing

Probe tube form: Mechanical probe holder or pad plug-in

Anchorage: Double force cpt equipment anchoring device

Truck handling and horizontal form: 4 hydraulic legs, 1500mm stroke, controlling way is optional.

Transport profile size: 3800×1800×2300 (L×W×H)mm

Weight: 5.5T

Hydraulic oil cooling form: Air cooled

Hydraulic tank capacity (L): 170

Speed: 1~4(km/h)

Walking slope: ≤30°

Working environment temperature: –25 C°-45C°

Ground anchor form: Single or multi-leaf anchor

Anchor diameter (mm): 300~400

Matching probe: 10cm² or 15cm² of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ32~Φ42 (optional).
