Hydraulic CPT Static Cone Penetrometer Apparatus 4.85KW 2600r/min Rated
Hydraulic CPT Static Cone Penetrometer Apparatus 4.85KW 2600r/min Rated
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Certification: ISO9001
Model Number: WYSB-3
High Light:

cone penetrometer apparatus


cone penetration apparatus

Payment & Shipping Terms
Packaging Details: Stand Exporting Package
Delivery Time: 2 WEEKS
Type: CPT Static Cone Penetrometer
Engine: Single-cylinder 175 Diesel Engine Water Cooling Horizontal Four Stroke Water Cooling
Rated Power: Speed: 4.85KW-2600r/min
Weight: 120kg(excluded Accessories)
Anchor Diameter (mm): 150~250
Working Environment Temperature: –25 C°-45C°
Product Description

Portable Lightweight WYSB-3 Hydraulic CPT Static Cone Penetrometer

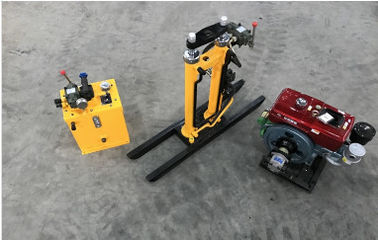

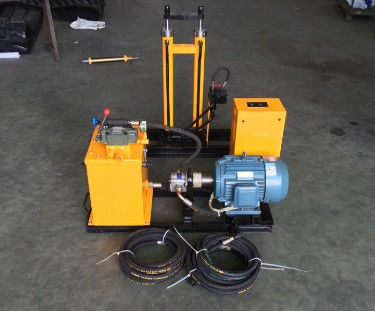

WYSB-3 is a very economical and lightweight CPT test equipment, which has separate hydraulic power unit and hydraulic cylinder unit connected with flexibly with high pressure hose and hydraulic quick coupling. The lightweight size is easy to handle and can be accessed almost anywhere else where large equipment can't reach, especially for shallow holes roads. It can also be easily installed on a wide range of new or existing platforms such as transport vehicles, tracked chassis, towed cars, barges, etc.


High quality hydraulic components and other components ensure the equipment have the stable and reliable performance. Adopting anti-high oil temperature design, effectively guaranteeing the service life and efficiency of equipment under high temperature weather days.

Configured with accessories can be extended for in-situ tests such as pore pressure static test (CPTU) and vane shearing test (VCT).



Main Technical Specification:


Engine: Single-cylinder 175 diesel engine water cooling horizontal four stroke water cooling

Rated power - speed: 4.85KW-2600r/min

CPT Hydraulic cylinder device: Rated penetration force30KN; Rated extraction force 50KN; 570mm stroke for fast rise.

Probe tube form: Mechanical probe holder or pad plug-in

Handle form: designed trolley

Weight: 120kg(excluded accessories)

Anchor form: hydraulic anchor or manual anchor

Ground anchor form: Single or multi-leaf anchor

Anchor diameter (mm): 150~250

Working environment temperature: –25 C°-45C°

Matching probe: 10cm2 or15cm2 of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ25~Φ32 (optional).


Hydraulic CPT Static Cone Penetrometer Apparatus 4.85KW 2600r/min Rated 0 Hydraulic CPT Static Cone Penetrometer Apparatus 4.85KW 2600r/min Rated 1
