Portable Cone Penetration Test Apparatus Shallow Holes Roads Anchor Dia 300 - 400mm
N/M
MOQ
Portable Cone Penetration Test Apparatus Shallow Holes Roads Anchor Dia 300 - 400mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Certification: ISO9001
Model Number: WYSB-20
High Light:

cone penetrometer apparatus

,

cone penetration apparatus

Payment & Shipping Terms
Packaging Details: Stand Exporting Package
Delivery Time: 2 WEEKS
Specifications
Type: CPT Static Cone Penetrometer
Engine: Single-cylinder 1105 Diesel Engine Water Cooling Horizontal Four Stroke Water Cooling
Rated Power: Speed: 13.2KW-2200r/min
Weight: 400kg (excluded Accessories)
Anchor Diameter (mm): 300~400
Working Environment Temperature: –25 C°-45C°
Product Description

Shallow Holes Roads Anchor diameter 300~400 mm Portable Hydraulic CPT Static Cone Penetrometer



WYSB-20 is a very economical and lightweight CPT test equipment, which has separate hydraulic power unit and hydraulic cylinder unit connected with flexibly with high pressure hose and hydraulic quick coupling. The lightweight size is easy to handle and can be accessed almost anywhere else where large equipment can't reach, especially for shallow holes roads. It can also be easily installed on a wide range of new or existing platforms such as transport vehicles, tracked chassis, towed cars, barges, etc. It also can be easily installed on a wide range of new or existing platforms such as transport vehicles, tracked chassis, towed cars, barges, etc.



High quality hydraulic components and other components ensure the equipment have the stable and reliable performance. Adopting anti-high oil temperature design, effectively guaranteeing the service life and efficiency of equipment under high temperature weather days.

Configured with accessories can be extended for in-situ soil test, such as CPTU, PMT, DMT, VST, WVT.

In-situ tests such as pore pressure static test (CPTU) and vane shearing test (VCT).



Main Technical Specification:



Engine: Single-cylinder 1105 diesel engine water cooling horizontal four stroke water cooling

Rated power - speed: 13.2KW-2200r/min

CPT Hydraulic cylinder device: Rated penetration force200KN; Rated extraction force230KN; 550mm stroke for fast rise.

Probe tube form: Mechanical probe automatic gripper or pad plug-in

Handle form: designed trolley

Weight: 400kg (excluded accessories)

Anchor form: hydraulic anchor

Ground anchor form: Single or multi-leaf anchor

Anchor diameter (mm): 300~400

Working environment temperature: –25 C°-45C°

Matching probe: 10cm2 or 15cm2 of Single and double bridge cone probe, electric vane probe, pore water pressure head (all European and American manufacturers can match).

Measuring instrument: Cone penetration data automatic acquisition instrument (all European and American international manufacturers can match).

Probe specifications (mm): integral high-strength joint-less probe Φ32~Φ42 (optional).

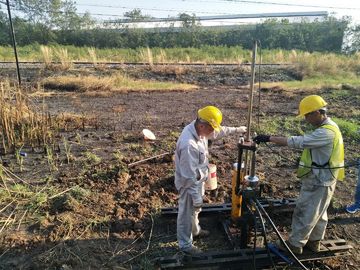

Portable Cone Penetration Test Apparatus Shallow Holes Roads Anchor Dia 300 - 400mm 0

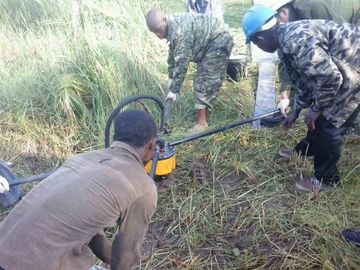

Portable Cone Penetration Test Apparatus Shallow Holes Roads Anchor Dia 300 - 400mm 1
