DCDMA Standard B N H P Wire - Line Core Barrel Used In Mineral Exploration Deep Hole

Brand Name:	SINOCOREDRILL
Model Number:	BWL NWL HWL PWL
MOQ:	N/A
Packaging Details:	Sea Delivery Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Supply Ability:

Based on Detailed Order

Highlight:

wireline coring system

wireline core drill parts

Product Description

DCDMA Standard B N H P Wire - Line Core Barrel Used In Mineral Exploration Deep Hole

Wire-line core drilling equipment is very commonly used for mineral exploration for deep holes because of practical usage.

Sinocoredrill products are manufactured by using high quality raw materials and designed according to DCDMA ,wire-line –Q standard.

We offers to clients following models of wire-line core barrel compatible with -Q Wire-line Standard Drilling Equipment;

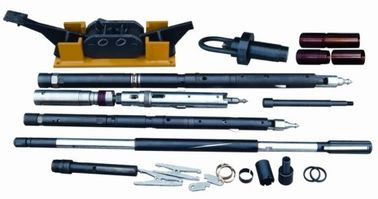

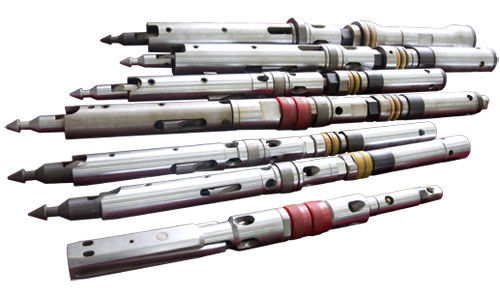

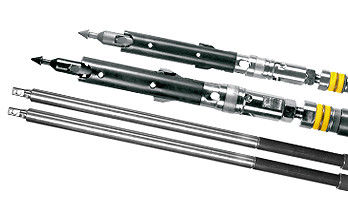

Wire-line Double Tube Core Barrel; B, N, H, P sizes;

Wire-line Triple Tube Core Barrel; B-3, N-3, H-3, P-3 sizes;

Wire-line Core Barrel T2-76, T2-86, T2-101… T series;

Wire line core barrels are used when coring to greater depths, mainly because they eliminate the need to couple and uncouple the rod string each time the core is retrieved. An overshot device is dropped on a cable and directly couples onto the inner tube assembly, allowing fast retrieval of the core after each core run. Available in DCDMA sizes B, N, H. and P.

Specification	Core Barrel Type
Specification	B W/L	N W/L	H W/L	P W/L
Hole Diameter (mm)	59.9	75.7	96.3	122.8
Core Diameter (mm)	36.4	47.6	63.5	85.0
Kerf / Crown Thickness (mm)	11.6	13.9	16.2	18.5
Cutting Area (cm²)	18.3	27.2	41.1	61.7
Hole Area (cm²)	28.3	45.0	72.8	118.5
Cutting Area as % of Hole Area	64%	60%	56%	52%
Core Area (cm²)	10.3	17.8	31.7	56.8
Recommended Drill Rod	B W/L	N W/L	H W/L	P W/L
Recommended Casing	BW	NW	HW	PW
Conversion to triple tube possible	Yes	Yes	Yes	Yes
