Product Details:
|
| Model: | GXY- 2T / GXY-2BT / GXY-2CT | Type: | Spindle Core Drill Rig |
|---|---|---|---|
| Drilling Diameter: | φ42mm；φ50mm | Motor: | 22KW |
| Diesel: | 40KW | Size: | 2160x950x1800 Mm |
| Weight: | 1000kg | ||
| High Light: | core drill rigs,diamond core drilling |
||

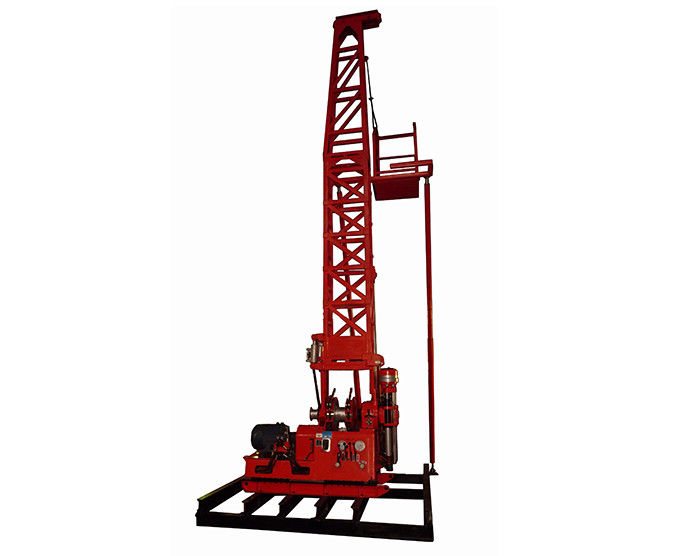

300m Spindle Core Drilling Rig With Tower GXY- 2T / GXY-2BT / GXY-2CT
The GXY-2 series drilling rig all-in-one tower and machine core exploration drill is a boring tower containing GXY type core drill and rod boring tower, with function to rise and fall,featured in simple and scientific structure, light weight of drill body and conveninent and flexible operation characteristic, the drill is especially suitable for drilling high angular slant hole.
|
|
GXY-2CT |
GXY-2T |
GXY-2BT |
|
Drilling Depth m |
200~300 |
300~600 |
300~600 |
|
Drilling Diameter mm |
φ42mm；φ50mm |
φ42mm；φ50mm |
φ42mm；φ50mm φ60mm |
|
Spindle Drilling Speed(r/min) |
Forward Speed RPM 56~996 Reverse Speed RPM 44；206 |
Forward Speed RPM 70~1241 Reverse Speed RPM 55；257 |
Forward Speed RPM 56~998 Reverse Speed RPM 44；207 |
|
Max torque of spindle |
2500N.m |
2760N.m |
3500N.m |
|
Max pull force of spindle (KN) |
60 |
72 |
72 |
|
Max pressing force of spindle (KN) |
45 |
54 |
54 |
|
Spindle stroke mm |
500 |
600 |
600 |
|
1nside diameter of spindle (mm) |
Φ53 |
Φ68 |
Φ93 |
|
Max lifting capacity (low speed and single rope ) |
30kN |
30kN |
30kN |
|
Diameter of steel wire rope |
φ16mm |
φ16mm |
φ16mm |
|
Drum Capacity |
50m |
50m |
50m |
|
Lifting Speed of ( single rope and single layer ) |
0.41；0.73；1.15；1.58m／s |
0.41；0.73；1.15；1.58m／s |
0.41；0.73；1.15；1.58m／s |
|
Power Engine (KW) |
Motor Y180M-4 (18.5) Diesel Engine 2100 (17.6) |
Motor Y180L-4 (22) Diesel Engine 4100 (40) |
Motor Y180L-4 (22) Diesel Engine 4100 (40) |
|
Mobile cylinder stoke mm |
465 |
465 |
465 |
|
Machine Size (LxWxH): |
2090x850x1500mm |
2160x950x1800 mm |
2200x950x180mm |
|
Weight kg |
900 |
1000 |
1200 |
|
Drilling Tower Height m |
7.6m |
7.7m |
7.7m |
|
Drilling Tower base size mm |
2800x2800 |
2800x2800 |
2800x2800 |
|
Drilling Tower Adjust Angle |
45~90° |
45~90° |
45~90° |
