Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings

Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings
Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings

Large Image :  Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings

Product Details:
Place of Origin: CHINA
Brand Name: BD
Certification: ISO
Model Number: BMMH-315
Payment & Shipping Terms:
Minimum Order Quantity: N/M
Price: AS PER DETAILED INQUIRY
Packaging Details: STANDARD EXPORTING PACKAGE
Delivery Time: 1 WEEK
Supply Ability: 20 SETS PER MONTH

Thermoplastic Welding Fusion Equipment Welding Saddle Shaped Pipe Fittings

Description
Model: BMMH-315 Power Supply: 380V, The Voltage Can Be As Local Demand
Total Power: 11.7 Kw Emp. Of Heating Plate: 170℃~250℃(±7℃), Max.270℃
Operating Voltage: 380V/415V Power Frequency: 50Hz/60Hz
Insulation Resistance: >1M Ω
Highlight:

plastic pipe fusion welding machine

,

plastic pipe welding equipment

Welding saddle shaped pipe fittingsThermoplastic welding fusion equipment 380V, the voltage can be as local demand

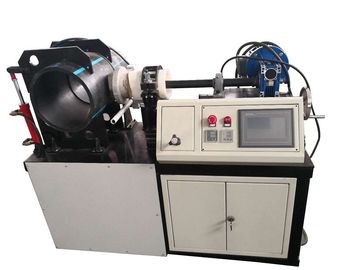

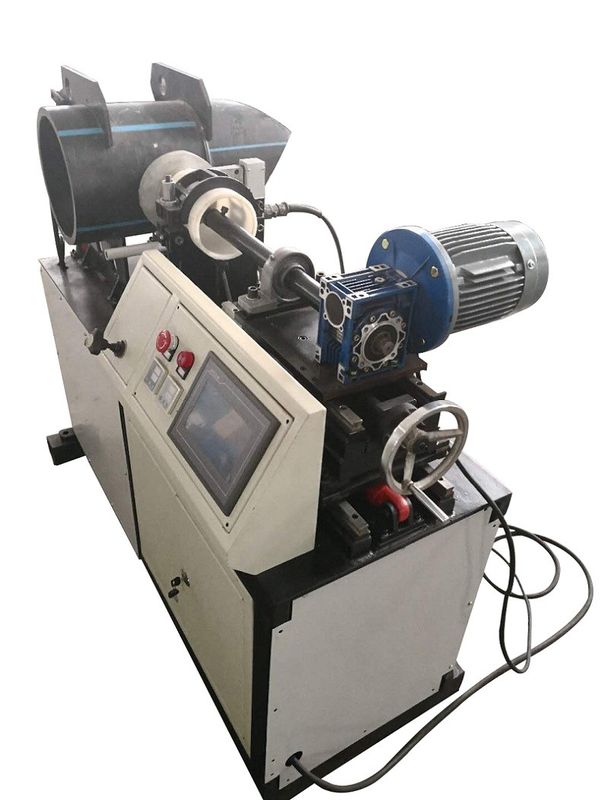

This machine BRMH-315 is a series of heat fusion machine that used for welding saddle shaped pipe fittings. The diameter of main pipe can be to 315mm, and the branch-pipe diameter can be fit for 110mm and 160mm.The standard clamps are suitable for the PE pipe fittings which are accordance with GB/T13665-2000.



This kind of machine is suitable for producing HDPE tee pipe fittings.

Select the parameters, like pipe,diameter,SDR,connecting type. Then the welding parameters will be adjusted fully automatic. The welding pressure can be calculated according to the pipe type.

When select the custom option, operator can change the parameter.

Automatic program for welding process.

Automatic measurement of drag pressure and automatic pressure compensation during welding.

There is one welding data log stored in the HMI memory.That can query the fittings according to the job date.Then can select the pipe weld number ,so the pipe welding data will be displayed on the screen ,like the welding data and temperature and pressure time curves of the pipe welds. HMI memory can save 1800 pieces of pipe welding data and temperature and pressure time curve, and will record the old record with a new record.

Display, print and screen labels are available in two languages (Chinese and English).



Specifications of heat fusion welding machine

Model BRMH-315
Temp. of Heating Plate 170℃~250℃(±7℃), Max.270℃
Operating Voltage 380V/415V
Power Frequency 50Hz/60Hz
Total Power (Kw) 11.7kw
Insulation Resistance >1M Ω



Thermoplastic welding fusion machine Equipment characteristics
1. The input power is 380V/415V±10% 3 phase 50Hz. If using an extended power supply line, the line must have sufficient section to provide adequate power.
2. The machine should be operated in a dry area. Protective measures should be adopted when used in rain or on wet ground.
3. The hydraulic control system and electric system are integrated in the whole box with the machine frame, which is waterproof design.
4. Independent design and development for all the machine parts.
5. Touch screen for operating control.
6. Digital temperature control for safety.
7. Real-time detection of various abnormal conditions and emergency termination button of welding.
8. Standard power supply voltage and power frequency input, fully adapt to the local demand.


Application of thermoplastic welding fusion machine: Applied for welding the plastic pipe for saddle shaped fittings. Which the main pipe diameter is to 315mm indeed. Software control system with touch screen and physical buttons for operation. Only one man can operate this kind of pe welding machines. Both on-site and workshop can use the machine to do the pipe fitting job.



Experience and markets:
In 2007, the year we company founded. With about 10 years of development, We provide advices, experiences and products to companies and individuals in the polyethylene pipe industry worldwide.
From 2015, we started to R&D this fully automatic welding machine. And in 2007, this automatic series machines realized mass production for our customers all over the world.
