|TYPE:||Multi-angle Pipe Welding Machines||DIAMETER:||630MM|
|Country Of Origin:||China|
plastic pipe welding equipment,
plastic pipe fusion welding machine

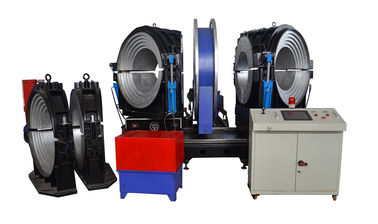

BRGH-630-II is the new generation product of 630mm series multi-angle pipe welding machines. With the difference to the 630-I product, this new version uses the hydraulic clamp flip and the independent system console that can be moved by the 4-wheel on the bottom of the box. It is a multi purpose welder.
This kind of machine is normally digital. The digital welding machine is a one type welding machine which is embedded microprocessor control like DSP and ARM,etc.
There are many features of this machine:
1, rich feature.
2, good consistency, stable and reliable performance
3, high reliability
4, high control accuracy
5, fast dynamic response
6, excellent welding performance
7, authoritative welding expert database
8, safety and energy saving
9, network and automated welding
HDPE fitting butt fusion welding machine Specifications
Application of welding plastic machine: Apply to produce the PE/HDPE/PP/PVDF pipe fittings in the workshop, with the hydraulic clamp flip. The fittings are like elbow tee type, cross type, 45-60 degrees Y type, etc.
Applied for welding the multi-angle plastic pipe fittings which diameter is from 355mm to 630mm indeed. Machine is fit for the water pipe joint job and gas project.
Original: Jiangsu, China
Certification: ISO9001,CE, ISO14001, OHSAS18001 etc
Material: Iron and aluminum
Voltage: 380V-50Hz/415V-60Hz, the voltage can be as local demand
Clamp Flip: Hydraulic
Payment term: TT, LC
Delivery date: Negotiable
Packing: Wooden box packing
Market: Middle East/Africa/Asia/South & North America/Europe/Australia
Warranty: 1 year
MOQ: 1 set
HDPE fitting butt fusion welding machine characteristics
1. Can be used to make plastic pipe fittings in the workshop, for connecting PE/PP/PVDF/HDPE materials pipe. Driven by control center integrated with hydraulic system.
2. The whole machine is integrated design that composed with frame rack, milling cutter, heating plate and the system control box.
3. The control box is covered by waterproof design.
4. Standard power supply voltage and power frequency input, fully adapt to the local demand.
5. Engineer can operate the control system to finish the pipe connecting job.
Experience and markets:
In 2007, the year we company founded. With about 10 years of development, We provide advices, experiences and products to companies and individuals in the polyethylene pipe industry worldwide.
At the same time, we started to R&D this type of machine. And from 2008, this series machines realized mass production for our customers all over the world.
➢ Provide the presale service for customer consultancy.
➢ Free visit touring to the company at any time.
➢ Customized service and OEM/ODM for all the customers.
➢ Guarantee technical support remote or on site.
➢ Close follow-up of all orders by special person and keep customers informed timely.
➢ 24 hours after-sale support service.
➢ Replacement of spare parts for free during the warranty period.
● Provide the quality guarantee and company promise paper.
● All information required for export, including proforma invoices and contracts.
● We have strict certification of equipment inspection before packing.
● 100% inspection before the machines start to shipment.
● Operation manual of equipment and regular training for inspection staff.
● Remote and on-site technical support and training for all clients.
● Online or offline trouble shooting.
