Crawler Type 1000 Tons Horizontal Directional Drilling Rigs

Crawler Type 1000 Tons Horizontal Directional Drilling Rigs
Crawler Type 1000 Tons Horizontal Directional Drilling Rigs Crawler Type 1000 Tons Horizontal Directional Drilling Rigs

Large Image :  Crawler Type 1000 Tons Horizontal Directional Drilling Rigs

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: TYZ-1000X20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: Negotiable
Payment Terms: Negotiable

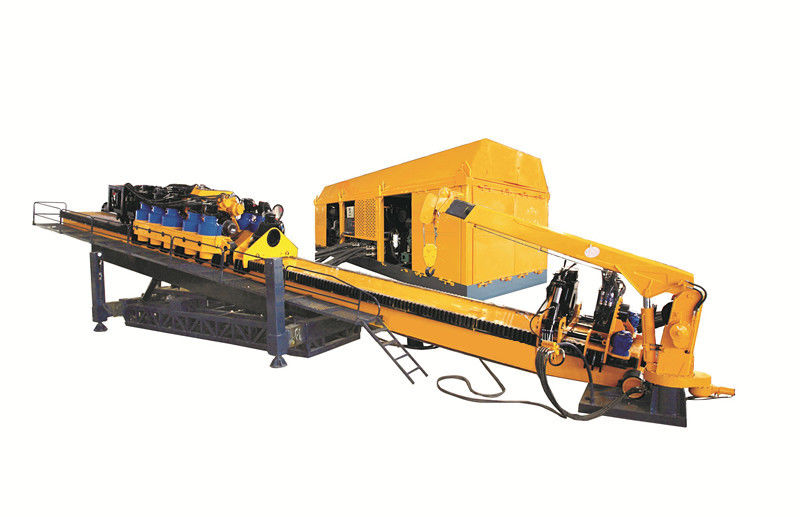

Crawler Type 1000 Tons Horizontal Directional Drilling Rigs

Type: Horizontal Directional Drilling Machine ,Trenchless Rig Warranty: 1 Year
Power: 1560/1620kw , 4 Diesel Engines Pullback Force: 1000Tons/10450KN
Usage: Trench Method , Laying Cables , Pipe Line ,horizontal Precipitation Engineering , Environmental Protection , Long Distance Pipes Supporting Engineering ,special Base Engineering And For Pilot-hole Of Push Pipe Engineering ,etc. Certificate: CE
Color: Customized
High Light:

1000 Tons horizontal directional drilling machine


Crawler hdd drill rig

1000Tons/ 200KN·M Horizontal Directional Drilling Rig ,1620KW High Power Crawler

Main technical features:

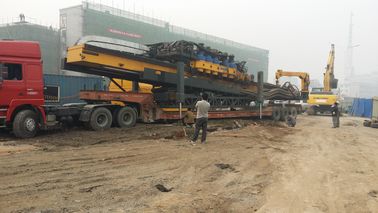

1. The combination of the rig's self-loading and unloading allows to board the trailer itself, saving time and effort.
2. The power of the main engine adopts the dual power configuration of four diesel engines, the power reaches 1600 KW, and the power of the diesel engine adopts the hydraulic coupling mode. The two power units of the diesel engines are separately configured, which can operate simultaneously and work independently, which greatly improves the construction safety and reduces Operating Costs. In the construction of drilling rigs, even if the diesel engine and hydraulic control unit adopt the products of the world's top technology, it is inevitable that there will be a failure in actual application. When a failure occurs, a group of diesel engines will stop, while the other one can still operate as usual, although the construction The speed slowed down a lot, but he was still able to ensure safe construction, improved safety and reliability, and also provided sufficient time for drilling rig repair work.
3. The power head adopts the low-speed high-torque hydraulic hydraulic top drive mode, and the starting torque is large. The spindle adopts a unique floating structure to facilitate the loading and unloading of the drill rod and reduce the wear of the drill rod screw.
4. The hydraulic system of the drilling rig adopts well-known hydraulic products at home and abroad. The electro-hydraulic proportional closed circuit cooperates with the open load sensing circuit, which has high reliability and advanced performance.
5. The operation of the drilling rig adopts the remote operation mode, the remote control, and the independent operation room provide the operator with a safe, reliable and clean operating environment.
6. The main machine is equipped with a random crane, which is used for on-site lifting of drill rods and drill bits, which reduces the labor intensity of the operator and facilitates on-site construction.

Main technical specifications:

Main Power 1560KW 390KW/2100rpm×4sets Wei Chai
Main Power   (High Power) 1620KW 405KW/2100rpm×4sets Volvo
Power head Spindle rotation speed range

Low speed 0-45 rpm

High speed0-90 rpm

Spindle maximum turning torque

200000N.m(0- 45rpm)

100000N.m(0- 90rpm)

Spindle instantaneous reversal shackle torque 270000 N.m
Spindle bore diameter φ102 mm
Power head forward distance 11 .5m
Power head max push & pull force 10450 KN
Power head max push & pull speed 36 m/min Six-speed transmission
Power head full load push & pull speed 8.5 m/min
Mast Structure Monolithic mast
Rack High quality alloy steel welded to the mast
Angle of mast adjustment 8°- 16°
Mast height during transportation Adjust according to the transportation vehicle
Lifting angle of mast during transportation 0°- 16°
Clamp Max shackle torque 420000 N.m
Max tightening torque 210000 N.m
Crane Max lifting capacity 63 KN
Wire rope diameter φ12 mm
Wire rope length 120 m

Steel track chassis, two-speed motor + walking reducer

High speed0-1.5 Km/h


Low speed0-0.75 Km/h

Optional track chassis
Machine Size (LxWxH) 20500×3200×3450 mm
Weight 81000 kg
