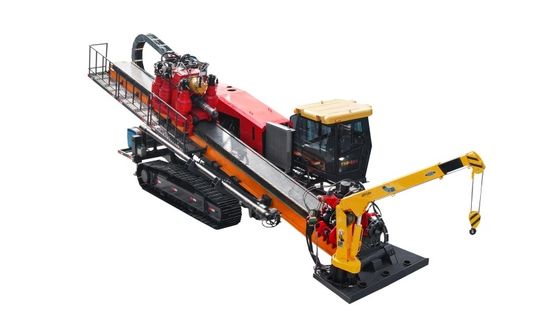

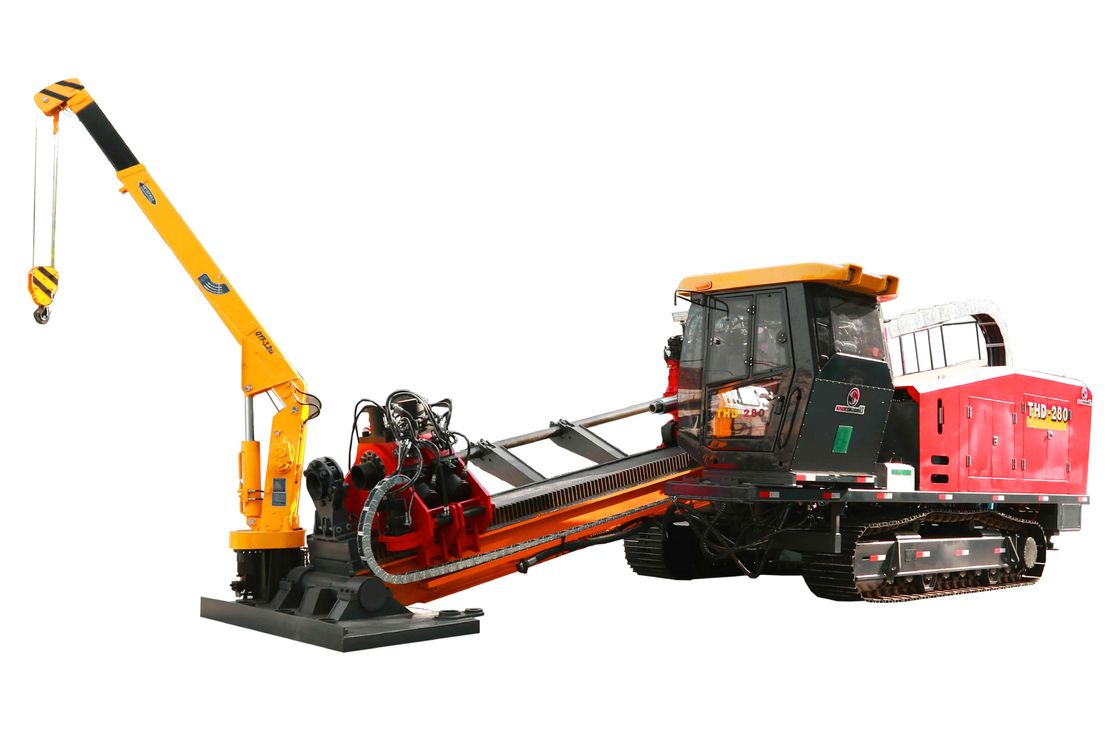

280T Smart Operating Cabin With Real-time Monitoring Horizontal Directional Drilling Rig

280T Smart Operating Cabin With Real-time Monitoring Horizontal Directional Drilling Rig

Product Overview:

National Stage III-compliant 390kW Weichai turbocharged common rail diesel engine, delivering 530 horsepower. It maintains stable performance in extreme conditions ranging from -40°C to 50°C.  The hydraulic system employs a closed + open dual-circuit intelligent load distribution system, ensuring optimal performance for  propulsion, retraction, and rotation in complex conditions. Thrust and Pullback system features a 280-ton 6- stage gear -rack drive with a 3 step-less adjustable transmission ,effortlessly navigating complex terrains. Its tracked chassis conquers 30°slopes with ease.  The rotation system delivers 60,000 Nm ultra-high torque and a 25,000 Nm rapid retraction mode, enabling "single-pass drilling" efficiency ,which reduces construction duration by over 30%. Auto-centering clamping rotary gripper with 70,000 Nm make-up torque and 140,000 Nm breakout torque ,accelerating rod changes by 40 seconds . Onboard crane,  smart operating cabin with real-time monitoring of over ten data points.      while the dual-control (wireline +manual) emergency walking system, combined with an expansive operational field of view, , safety and operational efficiency are prioritized.

Typical Applications:

• Urban and rural telecom cable installation

• Gas and water pipeline crossings under roads or rivers

• Electrical duct laying in congested areas

• Medium-length municipal infrastructure projects

Optional Configurations:

• Drill rods in various lengths and diameters

• Customizable operator’s cabin

• GPS-based tracking system

• Onboard mixing and mud recycling system

Push/Pull Drive

Max Push/Pull Capacity    : 6 gears, 280 tons

Push/Pull System: Rack and pinion,

4 Gears driving ; 3 step-less adjustable

   I   gear:    8    m/min

   II  gear  :   18    m/min

   III  gear:    30   m/min

Rotation

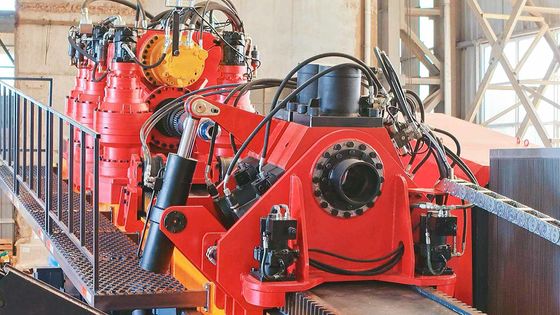

Rotary system: gear drive, 2 step-less speed regulation.

Max. Rotation Torque

   I   gear:  60000Nm @ 40r/min

   II  gear:  25000Nm @ 100r/min

Engine Power

Manufacturer:Weichai Power Co.,Ltd.

Rated value:390kw/2100r/min

Operation condition: Push/Pull and rotation can meet the rated maximum performance indexes listed above.

Hydraulic System

Rotary push-pull closed system, auxiliary circuit adopts open load sensing system.

Operation room

Double - occupancy operation room, built - in worktable with main machine

Crawler

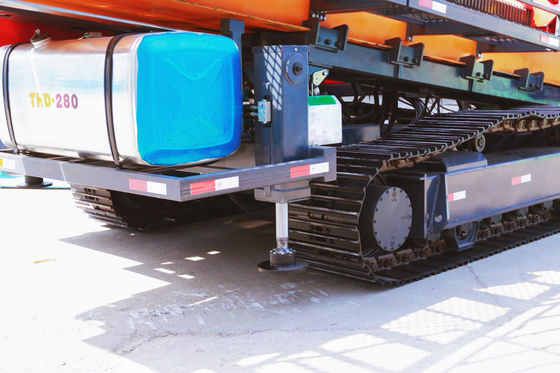

Caterpillar chain rail form

Crawler climbing Angle: 25 degrees

Crawler traveling Speed: 2.5km /h

Mast

Mast welding type structure, mast can be raised at the front for the convenience of the machine

Angle of mast penetration: 8°~  16°

Crane

3T straight arm crane, working radius 6m.

Drilling Rod

Drill pipe length up to 6 meters, diameter of 127mm screw NC50, OD of Adaptor :165 to 168mm

Foot Clamp:

Foot clamp: Adjustable spacing, accurate, stable and reliable shackle.

The shackle automatically centralizes and holds the shackle

Max. Making Torque:    70000Nm

Max. Breaking Torque:    140000Nm

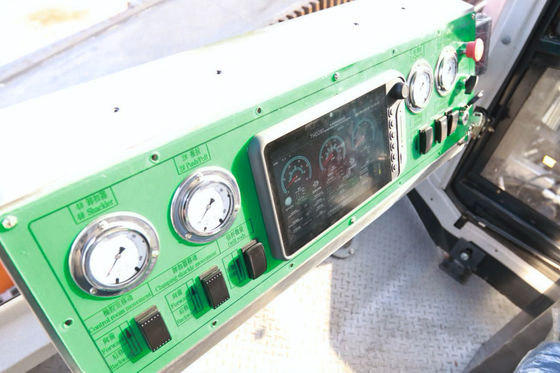

Accessories: pressure, flow, speed and other more than 10 items of data are directly indicated in the operating room, easy to analyze and judge the application situation.

Main machine weight :34 Ton

Dimension:12.5 mX3.15mX 3.3m
