Product Overview:

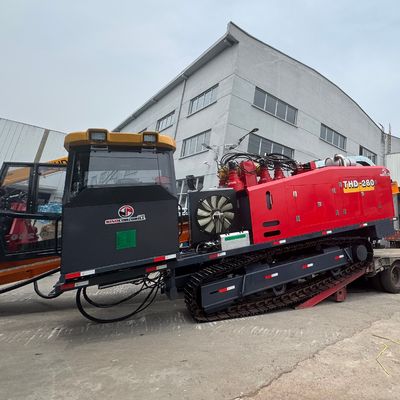

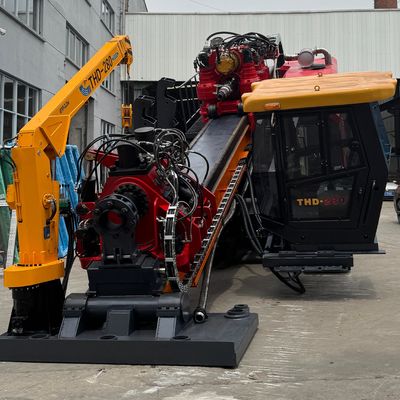

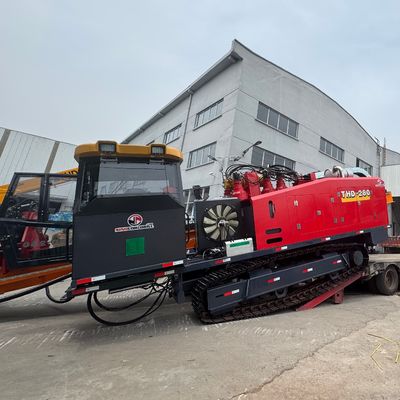

The THD-280 Horizontal Directional Drilling Rig is a high-performance trenchless drilling machine designed for efficient pipeline and cable installations beneath obstacles like roads, rivers, and buildings. With a maximum thrust and pullback force of 280 kN, the THD-280 is ideal for medium-distance HDD projects requiring precision, power, and durability.

Key Features:

• Thrust/Pullback Force: 280 kN
  Ensures smooth and powerful drilling and back-reaming operations in various ground conditions.

• Torque Output: 9000 N·m
  Provides sufficient torque to rotate a wide range of reamers and drilling tools efficiently.

• Rack-and-Pinion Drive System:
  Enhances operational stability and prolongs equipment life by reducing wear on drive components.

• Hydraulic System:
  Equipped with an advanced load-sensitive hydraulic system for precise control and energy efficiency.

• Rod Loader & Auto Anchoring System:
  Integrated semi-automatic rod loading and anchoring system improves working efficiency and reduces manual labor.

• Compact Design:
  The THD-280 is engineered with a compact body suitable for urban job sites and tight working environments.

• Mud Pump Compatibility:
  Compatible with both onboard and external mud pump systems for flexible drilling operations.

Typical Applications:

• Urban and rural telecom cable installation

• Gas and water pipeline crossings under roads or rivers

• Electrical duct laying in congested areas

• Medium-length municipal infrastructure projects

Optional Configurations:

• Drill rods in various lengths and diameters

• Customizable operator’s cabin

• GPS-based tracking system

• Onboard mixing and mud recycling system
