|Cooling Trpe:||Water Cooling||Thrust-pullback Force:||500 KN|
|Spindle Speed:||0-180RPM||Carriage Thrust/pullback Travel Speed:||0-24m/min|
|Maximum Spindle Torque:||18000 Nm||Displacement:||9.726L|
|Power:||243KW||Drilling Fluid Pressure:||12Mpa|
hdd horizontal directional drilling,
horizontal directional drilling machine
Large power reserve Horizontal Directional Drilling Machine high-quality European and American hydraulic components

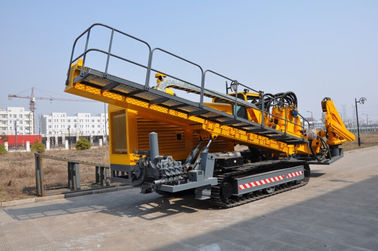

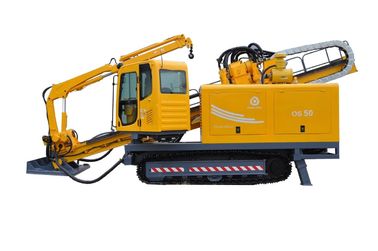

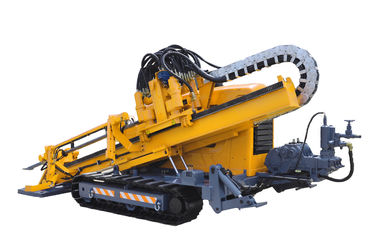

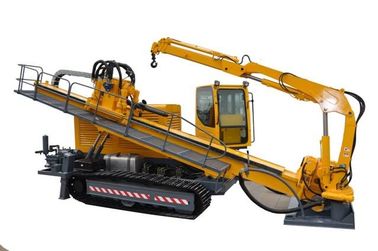

OS-50 HDD drilling rig is mainly used to cross roads, railways, buildings, rivers and the area does not have the excavation condition such like heavy traffic area, conservation area and nature reserve. can lay water, gas, electricity, telecommunications, natural gas and petroleum pipelines.
OS-50 HDD drilling rig is produced by FORWARD based on the asia market, The machine adopts high-quality European and American import hydraulic components, Full hydraulic drive, Large power reserve, With a variety of security measures, to make the construction process safer and more reliable.
OS-50 HDD drilling rig is equipped with a rotatable control station of air conditioner, making it more comfortable in operation.
1. Rubber track chain prevents damaging of road surface
2. Complex preheating system of engine, engine air manifold and hydraulic oil
3. Hydraulic ball valve on mud pump saves drilling fluid while drill rods’ changing
4. Control of drill rods’ untwisting
5. Lubrication mechanism of drill rods’ thread joints
6. Folding plastic hood ensures convenient maintenance
