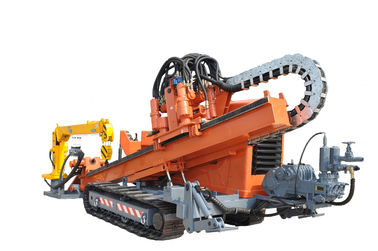

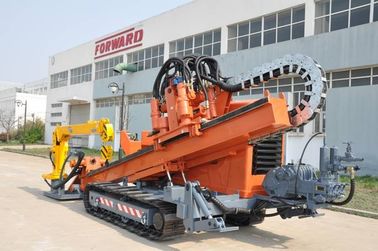

Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM

Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM

  • Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM
  • Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM
  • Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM
Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM
Product Details:
Place of Origin: China
Brand Name: Forward
Certification: ISO CE
Model Number: OS38
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: EXPORT STANDARD SEAWORTHY PACKING
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 15set per day
Contact Now
Detailed Product Description
Thrust-pullback Force: 380 KN Maximum Spindle Torque: 16000 Nm
Cooling Trpe: Water Cooling Spindle Speed: 0-200RPM
Carriage Thrust/pullback Travel Speed: 0-38m/min Model: Weichai 226B
Power: 240HP Drilling Fluid Pressure: 10Mpa
Drilling Angle: 7.5-16 Weight: 11000KG
Highlight:

hydraulic drilling rig

,

horizontal directional drilling machine

Spindle Speed 0-200RPM Horizontal directional drill rig with Maximum spindle torque 16000NM

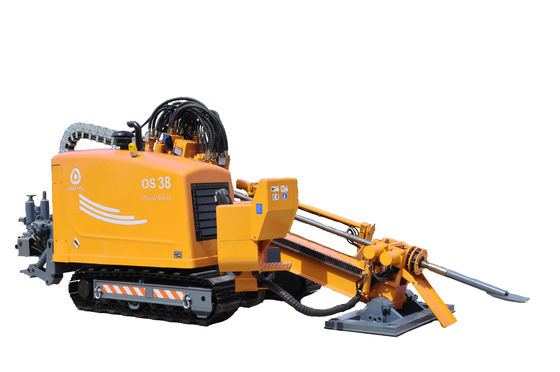

OS-38 HDD drilling rig is produced by FORWARD based on the asia market, The machine adopts high-quality European and American import hydraulic components, Full hydraulic drive, Large power reserve, With a variety of security measures, to make the construction process safer and more reliable.

OS-38 HDD drilling rig is equipped with a rotatable control station, making it more comfortable in operation.

OS-38 HDD drilling rig is mainly used to cross roads, railways, buildings, rivers and the area does not have the excavation condition such like heavy traffic area, conservation area and nature reserve. can lay water, gas, electricity, telecommunications, natural gas and petroleum pipelines.

Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM 0





Main Features

1. Rubber track chain prevents damaging of road surface
2. Complex preheating system of engine, engine air manifold and hydraulic oil
3. Hydraulic ball valve on mud pump saves drilling fluid while drill rods’ changing
4. Control of drill rods’ untwisting
5. Lubrication mechanism of drill rods’ thread joints
6. Folding plastic hood ensures convenient maintenance





Horizontal Directional Track Mounted Drill Rig Spindle Speed 0-200RPM 1
