Product Details:
|
Model: | BMRH 630 | Materials To Apply: | PE/PP/PVDF/HDPE |
---|---|---|---|
Power Supply: | 380V, The Voltage Can Be As Local Demand | Total Power: | 11.7 Kw |
Angular Error: | ≤1° | Pipe Diameter: | 800mm |
High Light: | plastic pipe fusion welding machine,plastic pipe welding equipment |

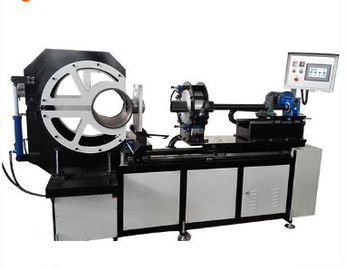

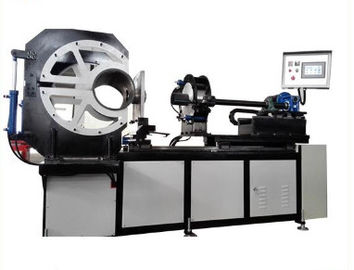

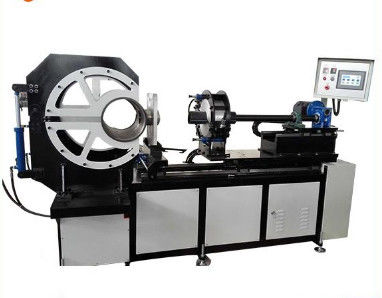

380V/415V voltage Saddle Pipe Fitting Welding Machine to melt the connection surface and the saddle type pipe
Saddle shaped poly pipe welding machines with electrical and hydraulic control system integrated with the machine frame rack. Both BRMH-630 and BRMH-800 belong to the BRMH series saddle shaped hdpe pipe welding machines. Use 380V/415V voltage to drvie the machine for fusion welding plastic pipe.
This machine is used to melt the connection surface and the saddle type pipe inner surface ,then push the saddle pipe to the main pipe, keep the pressure,and cooling to the ambient temperature. Mainly use for connecting main pipe and branch pipe.
The process is like this : hold the pipe, clean the connecting surface and marking the line, heating, withdrawing welder,adjust position, push the branch pipe to the main pipe, keep pressure and cooling.
(1) Before connecting pipe, support and fix the lower part of the connecting part of the pipe with a bracket.
(2) We should use scrapers, fine sandpaper and clean cotton cloth to clean the oxide layer, dirt and other factors that will affect the quality of the connection, and make the connection mark line.
(3) Use the saddle welding device (temperature set)to heat the both inside and outside of the pipe.Pull back the welder immediately when the heating done, and check the position then push the saddle pipe to the main pipe , keep the pressure until the temperature cooling down to the ambient temperature. When the branch pipe is pushed to the main pipe, it should be corrected promptly if it is found to be skewed.
Saddle type PE pipe welding Specifications
Price: Negotiable
Voltage: 380V, the voltage can be as local demand
Payment term: TT, LC
Delivery date: Negotiable
Packing: export standard
Market: Middle East/ Africa/Asia/South America/Europe/North America
Warranty: 1 year
MOQ: 1 set
Pipe Range(mm):
Diameter╲Model | BRMH-630 | BRMH-800 |
Max. main pipe | 630 | 800 |
Max. branch pipe | 315 | 400 |
Temperature of heating plate: 170~250℃(±5℃), Max. is 270℃
Power Supply: 380V/415V, 50Hz/60Hz
Total Power: 11.7kw
Total Weight: 1700kg
Keywords: saddle shaped hdpe pipe welding machines/fusion welding plastic pipe
Equipment characteristics
1. Apply to the pipe working job on site, for connecting PE/PP/PVDF/HDPE saddle shaped pipe fittings. Also can be used to make pipe fittings in the workshop. All the processing is driven by electrical and hydraulic control system.
2. Composed of frame rack, milling cutter, integrated heating plate, bracket and the touch screen console.
3. The hydraulic control system is integrated in one box with the touch screen operation.
4. Independent design and development for all the machine parts.
5. Real-time detection of various abnormal conditions and emergency termination of processing.
6. Standard power supply voltage and power frequency input, fully adapt to the local demand.
Application: Applied for welding the saddle shaped plastic pipe fittings which the main pipe diameter can be max. to 630mm and 800mm for this two machines. Control system with touch screen and emergency physical buttons for operation. One man can do the whole job for fusion welding plastic pipe. Both on-site and workshop can use the machine to do the pipe fitting job.
Experience and markets:
In 2007, the year we company founded. With about 10 years of development, We provide advices, experiences and products to companies and individuals in the polyethylene pipe industry worldwide.
From 2015, we started to R&D this fully automatic welding machine. And in 2007, this automatic series machines realized mass production for our customers all over the world.
