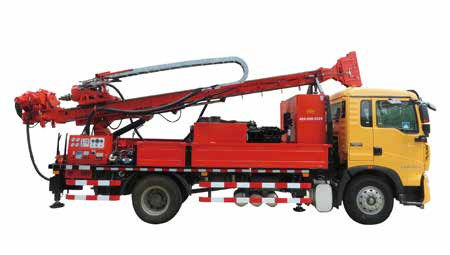

Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150

Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150
Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150 Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150

Large Image :  Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150

Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE ISO9001:2008
Model Number: M150
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: EXPORT STANDARD SEAWAY PACKAGE
Delivery Time: 2MONTH

Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150

Description
Type: Truck-mounted Multi Function Engineering Drilling Application: Industrial Construction ,Civil Building ,Water Well ,blastehole
Drilling Depth M: 150 Hole Diameter: 75-150mm
Drill Pipe Diameter: 42mm Diesel: 11kw /2000 R/min
Chassis Model: JX1061TSG25 Weight: 4350kgs
Dimensions: 6510*1995*2860mm
High Light:

core drill rigs

,

diamond core drilling

150m Civil Building Water Well M150 Truck-mounted Multi Function Engineering Drilling Machine



Rotary and pressurized linked drilling

Rotary and vibrating drilling with casing

Percussive and vibrating drilling with casing

Spiral drilling and other functions

It can also be applied in reverse circulation drilling and air DTH hammer if being equipped with the proper devices .

Serial onboard engineering rig meets the latest state requirements on the environmentally friendly discharge ,it usually uses the double -row cabin ,and is easy for operation shift and transport .The driving power can be generated .




1. M150 is a truck-mounted spindle type drilling rig. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blast hole and inspect hole of various concrete structure, etc.


2. It has large input power and output torque. Its drilling capacity is strong. It’s speed range is extensively. It’s capacity of dealing with accidents is good. It has an oil pressure feed structure and it’s labor intensity is low.


3. Oening the clinostat, it is easy to lift and loose the drill.

Description:

1. M150 is a truck-mounted spindle type drilling rig. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blast hole and inspect hole of various concrete structure, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3. It has large input power and output torque. Its drilling capacity is strong. It’s speed range is extensively. It’s capacity of dealing with accidents is well. It has an oil pressure feed structure and it’s labor intensity is low.
4. It’s working efficiency is high. It’s Dedicated device is easy to operate and disassemble,
5.By using hydraulic chuck, It is in strong and steady clamping force. By using the hydraulic fed, the drilling rig can move back directly.

6. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.



Specifications:



Hole depth 150m Rod dia 75mm
Hole depth 30m Rod dia 150mm
Spindle speed Forward speed:61;163;338;654r/min
Reverse speed:45r/min
Stroke of spindle 500mm
Max .lifting capacity 25KN
Spindle I.D. 53mm/62mm
Max .feeding capacity 20KN
.Main winch Steel Wire Cable Dia 9.3mm
Max .lifting capacity
(single line):
15KN
Lifting speed(the third layer): 0.187m/s,0.374m/s
Power Diesel engine ZS1110M
Mud pump BW-160
Weight (less engine) 4350kg
Dimensions (L×W×H):

6510×1995×2860



mm



Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150 0Truck Mounted Multi Function Engineering Drilling Machine 150m Civil Building Water Well M150 1





Applications:


1. Core drilling with carbide and diamond bit .
2. Engineering geological exploration.
3. Blast hole, exploring gas.
