High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ

High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ

  • High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ
  • High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ
  • High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ
High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ
Product Details:
Place of Origin: CHINA
Brand Name: SINOCOREDRILL
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: N/A
Packaging Details: Sea Delivery Package
Delivery Time: Based on Detailed Order
Payment Terms: T/T
Supply Ability: Based on Detailed Order
Contact Now
Detailed Product Description
Features: High Efficiency, Eco-friendly Product Name: Drill Rig Parts
Certificates: ISO9001: 2000 And API 5DP Power Type: Hydraulic
Model: BQ, NQ, HQ , PQ Type: Core Tray
Highlight:

geothermal drilling rigs

,

rig machine parts



High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ

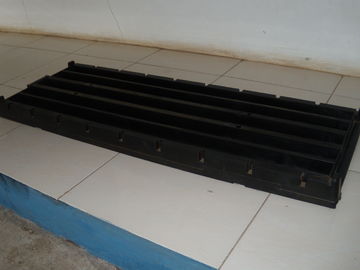

Plastic Drilling Core tray box  (BQ NQ HQ PQ )



Our core tray is made of high-quality plastic..It is strong and has longer life to use. there are BQ, NQ, HQ , PQ , four model for your choice.





Specifications



1:-Transportation cost is greatly reduced
2:-Not easy to be destroyed
3: -High intensity



1:low temperature resisting,not easy to- be destroyed.

2:-High temperature resisting with high intensity.

3:-Fast stockpile could be achieved easily without slippery.

4:Various models and complete ranges -of products.

5:Professionally produced by honorable enterprise of -3A classes




Feature:



1 standard one meter slot length.

2 environment friendly compared to wooden ones.

3 core boxes can stack up to save space.

4 reliable





Sizes of core tray



The plastic core tray  produced could meet the requirements in cold and hot temperatures and are of- good reputation.





Drill Hole Diameters

of Cores to Be Stored(mm)

Width of Each Lattice(mm)

Length of Each Lattice(m)

Numbers of Lattices

Outside Sizes

(mm)

BQ

45

48

1m

6

1070×385×50

NQ

49

55

1m

5

1070×385×55

HQ

65

69

1m

4

1070×385×70

PQ

86

92

1m

3

1070×385×93

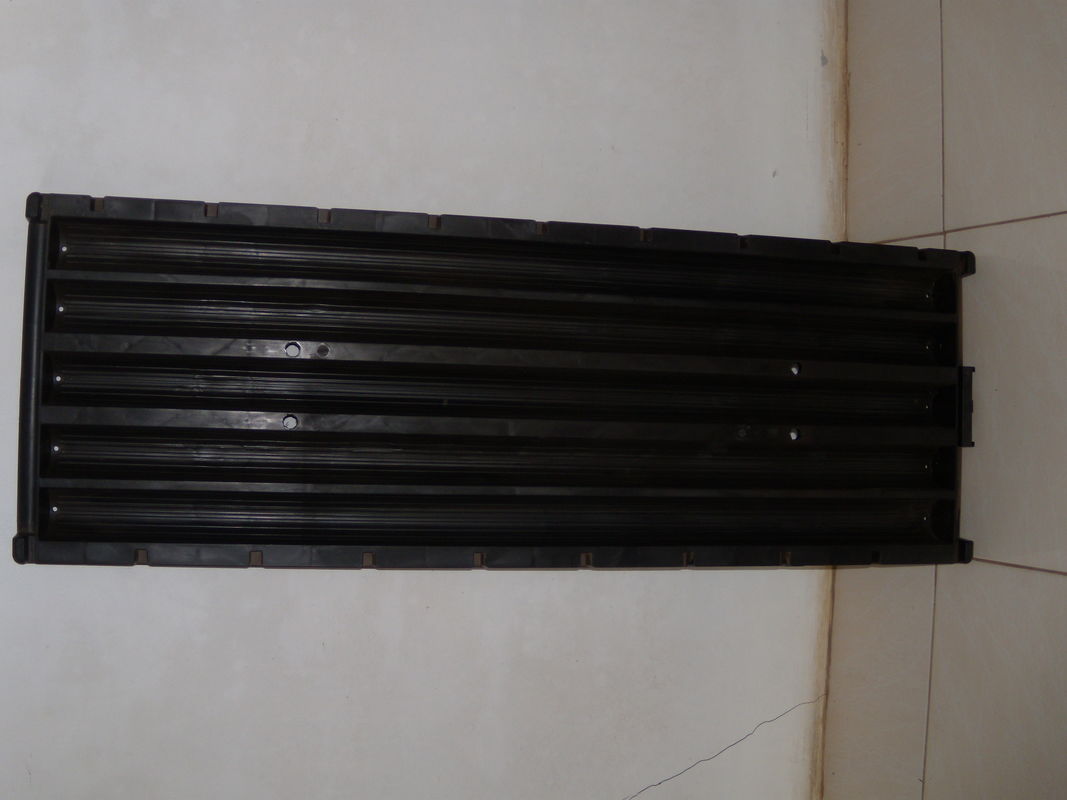

NQ  CORE  tray;

High Intensity Wireline Core Barrel Plastic Drilling Core Tray Box BQ NQ HQ PQ 0
