Product Details:
|
| Type: | Trailer Hydraulic Water Well Drilling Rig | Drill Depth: | 0-200 M |
|---|---|---|---|
| Drilling Diameter: | 90 - 250mm | Drill System And Operation: | Hydraulic |
| Weight: | 2200kgs | DIESEL ENGINE: | Deutz 38KW |
| Highlight: | water well drill rig,water borehole Drilling Rig |
||
Portable Well Machine Drilling Depth 200M Water Well Drilling Rig with CE ISO Certification

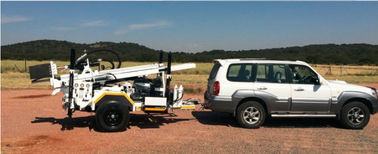

RC2 trailer mounted water well drilling rig able to handle water well drilling .
In most cases where boreholes are drilled in Africa it is to install hand pumps or solar pumps with a size smaller than 6" .For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps. The rig must be able to handle 6" PVC casing installations.

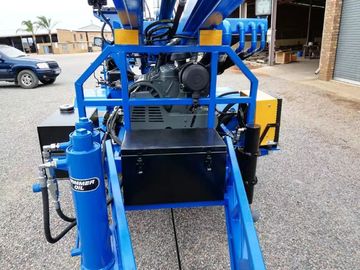

This water drilling rig, uses proven technology like the Deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank. We have decided to use roquete valves.

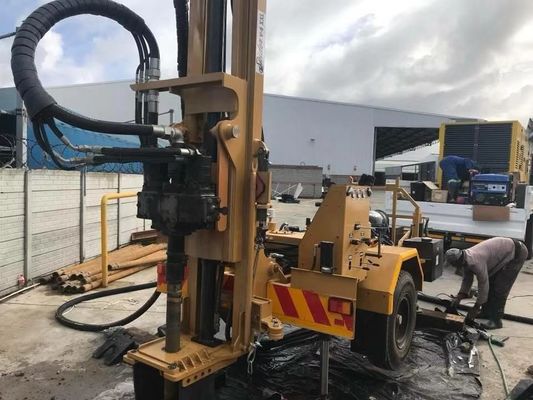

This portable water well drilling equipment uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm.The drill tower is telescopic and uses earthlight blocks to reduce friction and is directly connected on the feed cylinder. The drill head of this water well drilling machines is powered by a white drive product with 2200 Nm torque. So if you want a quality product that can drill up to 200mm holes.
Water well drilling rigs, borehole drilling rig, Water well drilling equipment, Well Drilling Rigs, Portable Well Drilling Equipment, Hydraulic Well Drilling Rigs, portable drilling rig, drill your own water well, home water well
Specification
| No. | Description | TWD200 |
| 1 | Geology drilled | All kinds |
| 2 | Drill depth | 0-200 m |
| 3 | Drilling Diameter | 90 - 250mm |
| 4 | Drill system and operation | Hydraulic |
| 5 | Rig assembly | 1 complete unit, main engine driven |
| 6 | Mobility | 2 wheel tandem road trailer |
| 7 | Transportation | Towed by pickup or light truck |
| 8 | Foam pump | Hydraulic driven, mounted on rig |
| 9 | Weight | 2200 kg |
| ROTARYHEAD&FEED SYSTEM | ||
| 10 | Top head drive by a hydraulic cylinder through heavy duty chain. | |
| 11 | Rotation torque | 2300 N-m |
| 12 | Speed | 0 - 80 rpm. |
| 13 | Head travel | 2.25 meter |
| 14 | Pull-up capacity | 50000 Nm |
| 15 | Pull-down capacity | 16000 Nm |
| 16 | Pull-up speed-slow feed | 1.22 meter/min |
| 17 | Pull-up speed-rapid feed | 12.26 meter/min |
| 18 | Pull-down speed-slow feed | 0-1.88 meter/min |
| 19 | Pull-down speed-rapid feed | 0- 16.90 meter/min |
| DIESEL ENGINE | ||
| 20 | Brand | Deutz |
| 21 | Power | 38KW |
| 22 | Model | F3-912 |
| DRILL PIPE | ||
| 23 | Drill pipe length | 2.00 meter |
| 24 | Drill pipe diameter | 60/76/89 mm |
| 25 | Thread | 2 3/8 REG API Mod |
| 26 | Power pack speed | 3000 rpm. |
| 27 | Load power pack | max. 47 hp. |
| FOAM PUMP(Optional) | ||
| 28 | Flow capacity | 400 liter/min |
| 29 | Foam Tank | 50 liter |
| 30 | Max. working pressure | 40 bar |
| HYDRAULIC SYSTEM | ||
| 31 | Hydraulic tank capacity | 180 liter |
| STABILIZING JACK | ||
| 32 | 1 front jacks and 2 rear jacks. | |
| 33 | Bore | 150 mm. |
| 34 | Stroke | 520 mm |
| AIR SYSTEM | ||
| 35 | Lubricator of venturi-type for down-the-hole drills. | |
| 36 | Max. pressure | 40 bar |
| 37 | Oil tank capacity | 8 liter |
| DIMENSIONS | ||
| 38 | Overall length | 4540 mm |
| 39 | Overall width | 1800 mm |
| 40 | Overall height | 2100 mm |
Q:Are you trading company or manufacturer ?
A: We are a specialized manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
T/T, L/C, Western Union.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
A: Min. order quantity: 1 piece. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promote technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: Where is your factory located in?
A: Our factory is located in Jiangyin city,Jiangsu province, China.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Sinocoredrill usually makes a serious inspection for all products and raw materials in strict procedure
